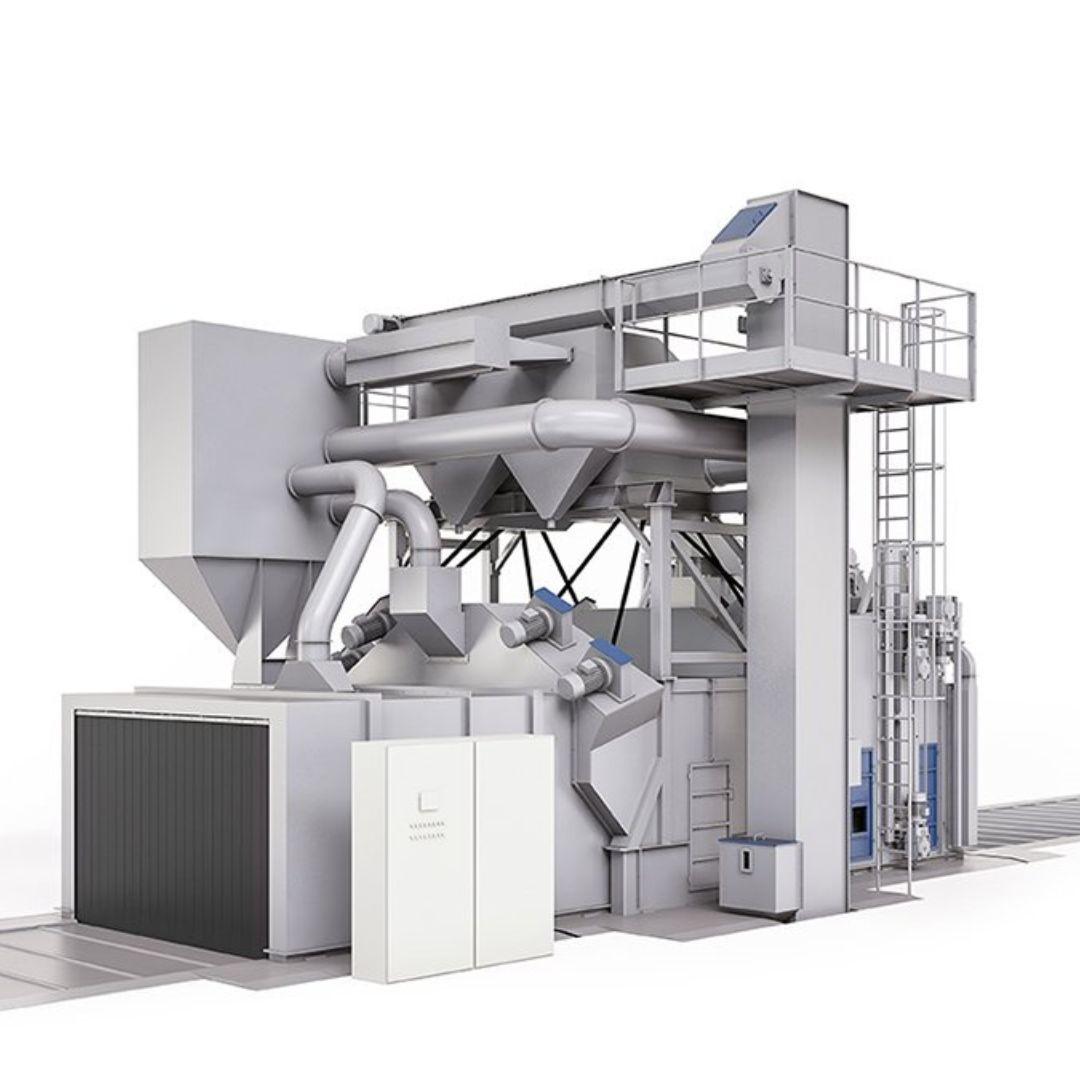

In the world of heavy steel fabrication, surface quality is everything. The Superior EdgeBlast Plates & Pipes Shotblasting Machine is the industry’s robust answer to the challenges of cleaning steel plates, standard profiles, and complex welded constructions.
The EdgeBlast Advantage. At the heart of the machine lies our proprietary turbine arrangement. Turbines are angled and positioned on the outer brim of the blasting tunnel to maximise energy transfer and ensure uniform cleaning across every millimetre of the workpiece. This “EdgeBlast” precision eliminates shadow zones, ensuring that even the inner flanges of beams and complex welded joints achieve the required roughness profile.
Applications | Shipyards and Marine Engineering | Steel Construction and Infrastructure | Iron Works and Rolling Mills | Heavy Machinery Manufacturing
Technical Data
| Machine Type | Max. Width for Plates (mm) | Max. Height for Profiles (mm) | Roller Conveyor Load Capacity (kg/m) | Blast Wheel Motor Power (kW) | Rotary Brush | Blow Off Ventilator |
|---|---|---|---|---|---|---|
| 6×6 | 600 | 1000 | 450 | 4×5.5 | O | O |
| 10×7 | 1000 | 700 | 800 | 4×7.5 | O | O |
| 15×6 | 1500 | 600 | 800 | 4×7.5 / 4×11 | O | O |
| 20×5 | 2000 | 500 | 1000 | 4×11 / 6×11 | ✓ | ✓ |
| 22×5 | 2200 | 500 | 1000 | 4×11 / 6×11 / 6×15 | ✓ | ✓ |
| 25×7 | 2500 | 700 | 1200 | 6×15 | ✓ | ✓ |
| 32×6 | 3200 | 600 | 1400 | 8×11 / 8×15 | ✓ | ✓ |
| 42×5 | 4200 | 500 | 1600 | 10×11 / 10×15 | ✓ | ✓ |
How It Works
- Loading: Workpieces are loaded onto a heavy-duty input roller conveyor.
- Blasting: As materials pass through the manganese-lined tunnel, sensors automatically trigger the turbines, delivering a high-velocity stream of steel shot.
- Cleaning: Before exiting, the material passes through a removal chamber equipped with a high-pressure blow-off fan and rotation brushes, stripping away residual abrasive from the top surfaces.
- Unloading: Clean, dust-free metal exits onto the output conveyor, ready for immediate welding or painting.
Key Features & Customisation
- Universal Application: Designed to handle all standard widths and lengths of plates and profiles.
- Smart Automation: Features continuous operating speed regulation and optional automatic abrasive flow control for optimal energy efficiency.
- Integration Ready: The Superior EdgeBlast is designed to serve as the core of a complete Preservation Line. It can be seamlessly integrated with hydraulic loading devices, pre-drying chambers, automatic primer painting booths, and final drying tunnels.
- Built to Last: Constructed with wear-resistant liners and heavy-gauge steel to withstand the abrasive environments of ironworks and rolling mills.
- Technical Flexibility We understand that no two production lines are identical. The Superior EdgeBlast can be customised to your specific facility requirements, including modifications to the workspace dimensions, turbine power, and roller conveyor load capacities.
