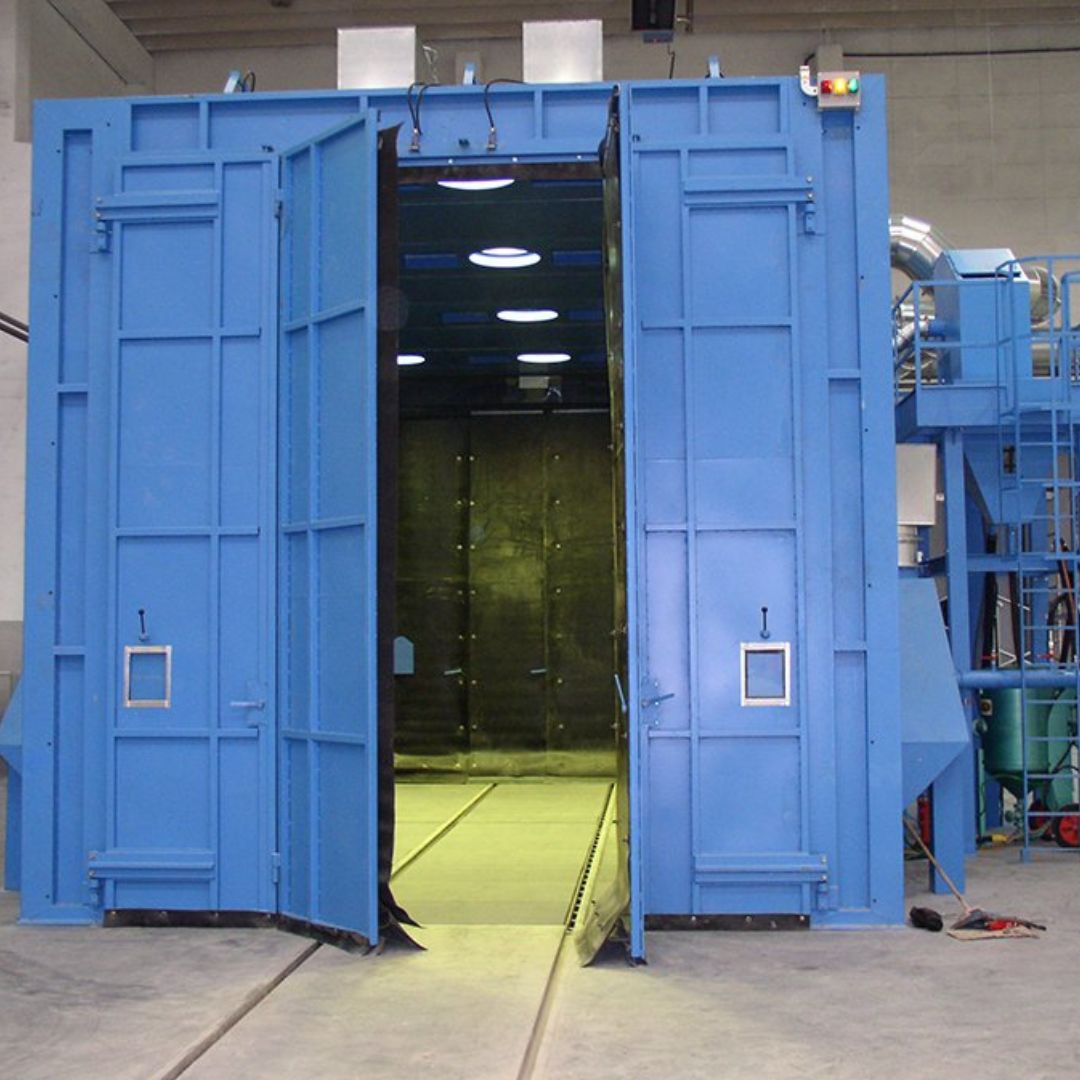

The SUPERIOR EdgeBlast Manual Shotblasting Chamber is engineered for the heaviest segment of the surface preparation market. It provides a controlled, environmentally compliant environment for blasting parts that simply do not fit in standard turbine machines.
The EdgeBlast Manual Shotblasting Chamber Advantage. Efficiency in a blast room is defined by how fast you can recover media. This shotblasting machine utilises a Scraper Floor System that requires minimal foundation depth.
- Continuous Recycling: A network of pneumatic or mechanical scrapers beneath the floor grating moves used abrasive to a transverse screw conveyor.
- Media Purification: The abrasive is transported to a bucket elevator and passed through an air-wash separator to remove dust and fines. Only clean, correctly sized abrasive is returned to the blast pot, ensuring faster cutting speeds and a consistent profile.
Applications | Rail Transit | Energy Sector | Heavy Fabrication | Foundries
Technical Data
| Specification | KOM 4x4x3 | KOM 7x4x4 | KOM 10x5x5 | KOM 15x6x5 | KOM 20x6x5 | KOM 25x6x6 | KOM 30x7x6 |
| Internal chamber length [m] | 4 | 7 | 10 | 15 | 20 | 25 | 30 |
| Internal chamber width [m] | 4 | 4 | 5 | 6 | 6 | 6 | 7 |
| Internal chamber height [m] | 3 | 4 | 5 | 5 | 5 | 6 | 6 |
| Number of nozzles [N.] | 1 | 1 | 1 | 1–2 | 1–2 | 2 | 2 |
Operational Flexibility. The room is designed around your logistics:
- Material Handling: Can be equipped with heavy-duty rail trolleys for floor loading or integrated with overhead monorails for suspended parts.
- Versatile Media: Compatible with steel grit for aggressive descaling or glass beads/corundum for stainless steel finishing.
- Automation Ready: While designed for manual blasting, the room can be fitted with multi-axis robots for dangerous or repetitive blasting tasks, keeping operators out of harm’s way.
Key Features & Customisation
- Superior Visibility: Fresh air enters through ceiling baffles and is extracted through wall vents, creating a constant downdraft that pulls dust away from the operator’s visor.
- Dust Filtration: Connected to our high-efficiency EdgeBlast Manual Shotblasting Chamber cartridge dust collectors to ensure zero emissions back into the factory.
- Custom Dimensions: There is no “standard” size. Every room is modular and built to the exact length, width, and height required by your largest workpiece.
