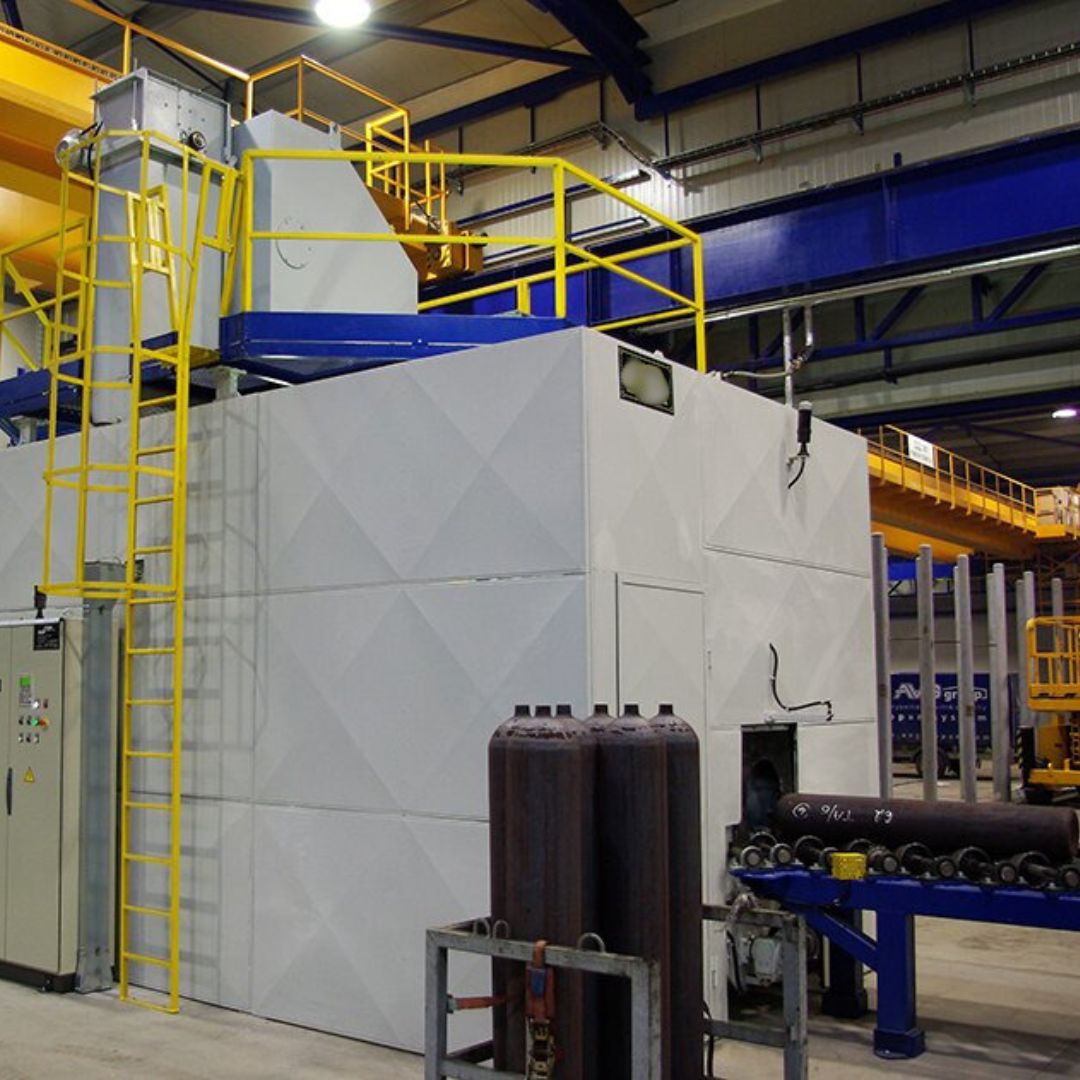

The SUPERIOR EdgeBlast Gas Bottles Shotblasting Machine is engineered to meet the rigorous safety and aesthetic standards of the pressure vessel industry. It is designed to process hollow cylindrical products of all sizes, ensuring 100% surface coverage without damaging the integrity of the bottle.
Three Specialised Configurations. To match your facility’s layout and throughput, the EdgeBlast Gas Bottles Shotblasting Machine is available in three operational modes:
- Tact (Batch) System: Ideal for refurbishment. Cylinders are loaded one-by-one, rotated on parallel rollers under the blast stream for a set cycle time, and automatically ejected.

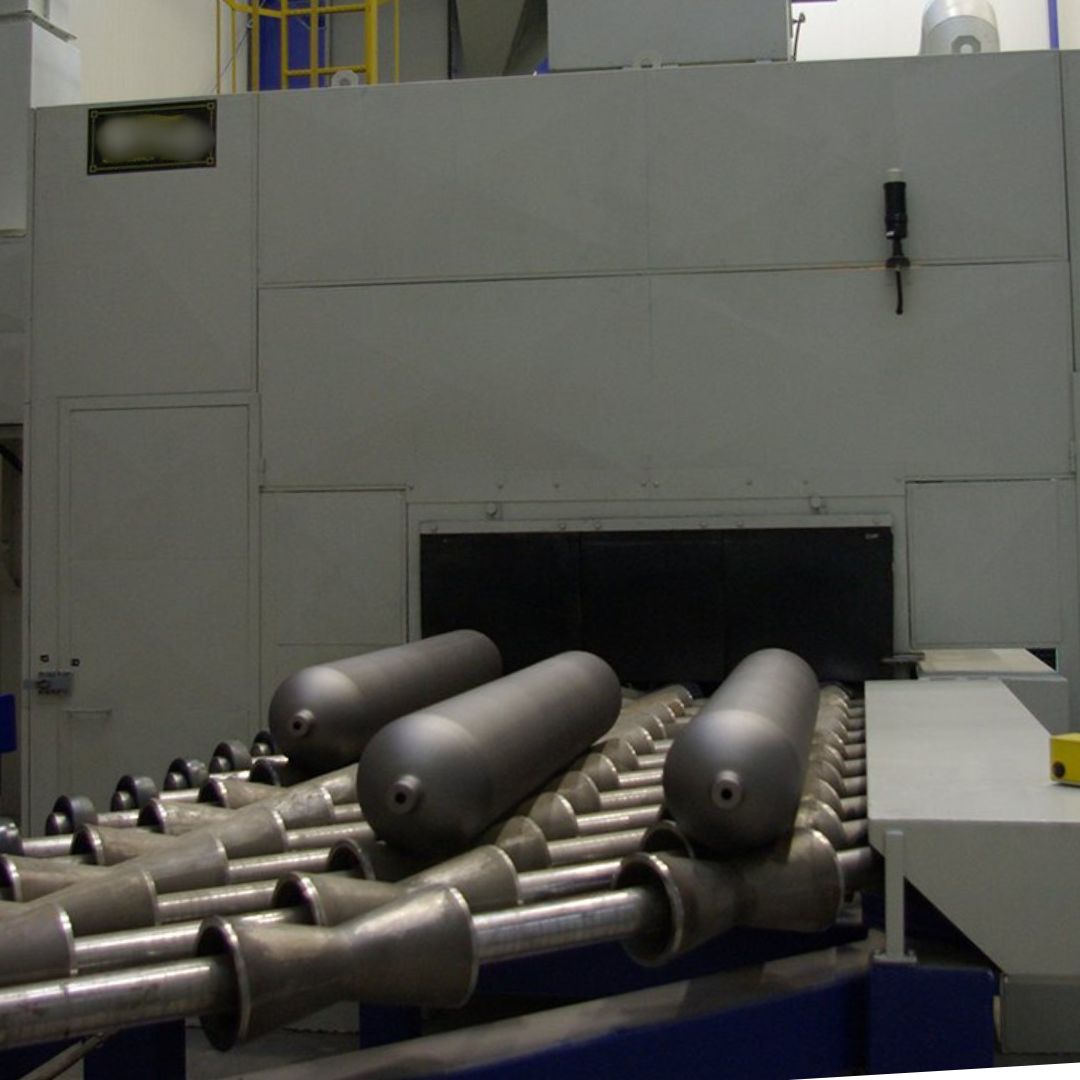

- Continuous Skew-Roll: Built for high-volume manufacturing. Cylinders travel on angled rollers that spiral them forward through the blast tunnel, ensuring continuous production without stops.
- Overhead Hook System: The perfect choice for integrated lines. Cylinders remain on the paint-line hangers, passing through the blast chamber before moving directly to the coating booth, minimising handling.
Applications | LPG & Propane | Technical Gases | Fire Safety | Boilers & Tanks
Technical Data
| Specification | GAB 1,4×12 | GAB 2,5×20 | GAB 3×4,8 | GAB 4,2×4,8 | GAB (3x)4,2×6 |
| Allowable diameter of gas bottles [mm] | 70 ÷ 140 | 70 ÷ 250 | 70 ÷ 300 | 70 ÷ 420 | 70 ÷ 420 |
| Allowable length of gas bottles [mm] | 200 ÷ 1200 | 200 ÷ 2000 | min. 480 | min. 480 | min. 600 |
| Flow system | TACT | CONTINUOUS | — | — | — |
| Blast wheel motor power [kW] | 3×7.5 | 4×7.5 | 3×22 | 3×15 | 3x3x7.5 |
| Gas bottles productivity (D=250mm, L=700mm) [N/h] | 45 | 300 | 210 | 310 | — |
-
Dual-Action Cleaning. While the primary system cleans the exterior, the EdgeBlast Gas Bottles Shotblasting Machine can be upgraded with an auxiliary Compressed Air Lance. This optional feature blasts the interior of the bottle simultaneously or in a separate station, removing internal scale and contaminants to ensure gas purity.
Key Features & Customisation
- Paint Line Integration: Designed to handshake seamlessly with automatic painting booths and curing ovens.
- Smart Handling: Available with automatic hydraulic loading arms and gravity-fed unloading ramps to reduce manual lifting of heavy steel tanks.
- Refurbishment Ready: The heavy-duty turbine arrangement is powerful enough to strip multiple layers of cured epoxy and industrial paint from used bottles.
