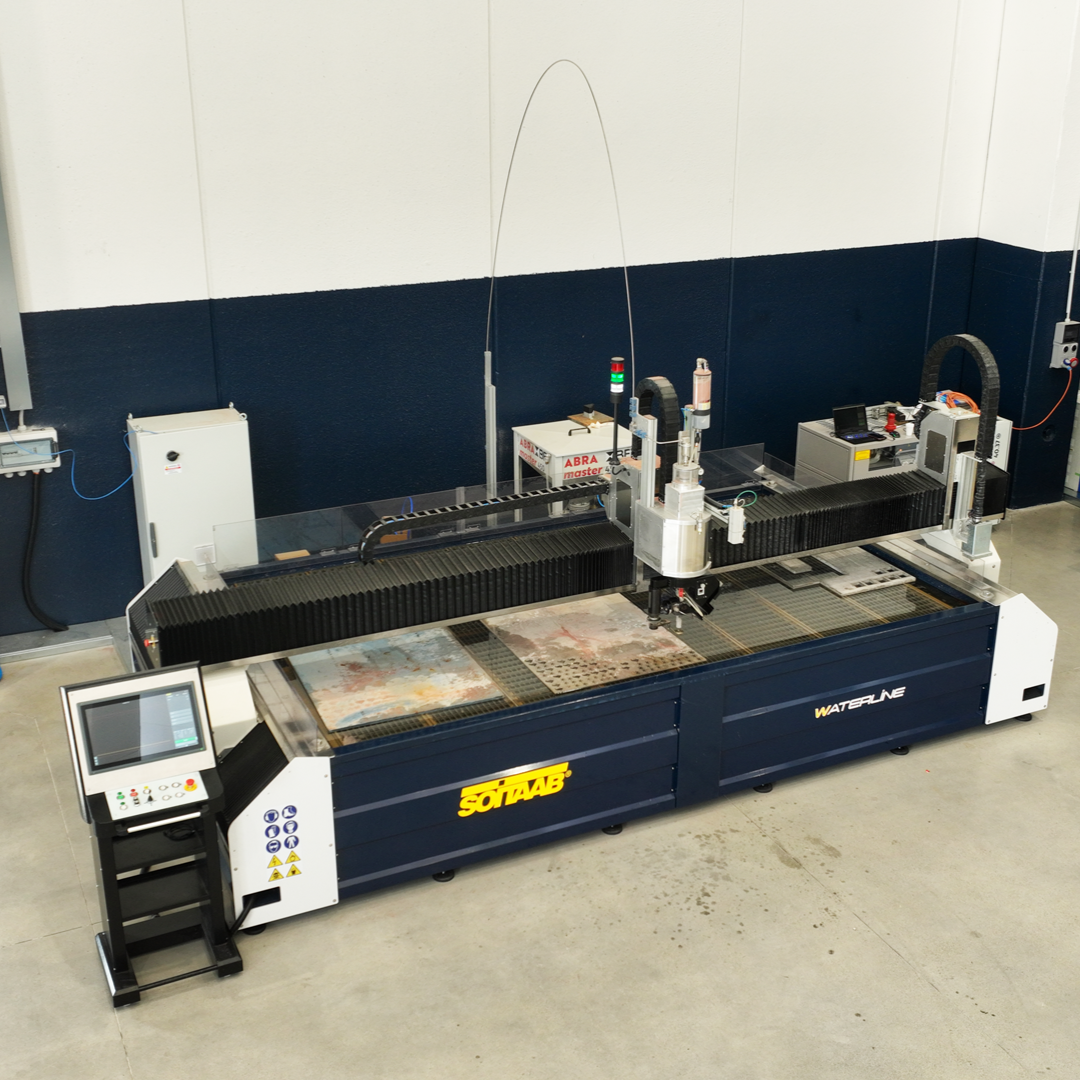

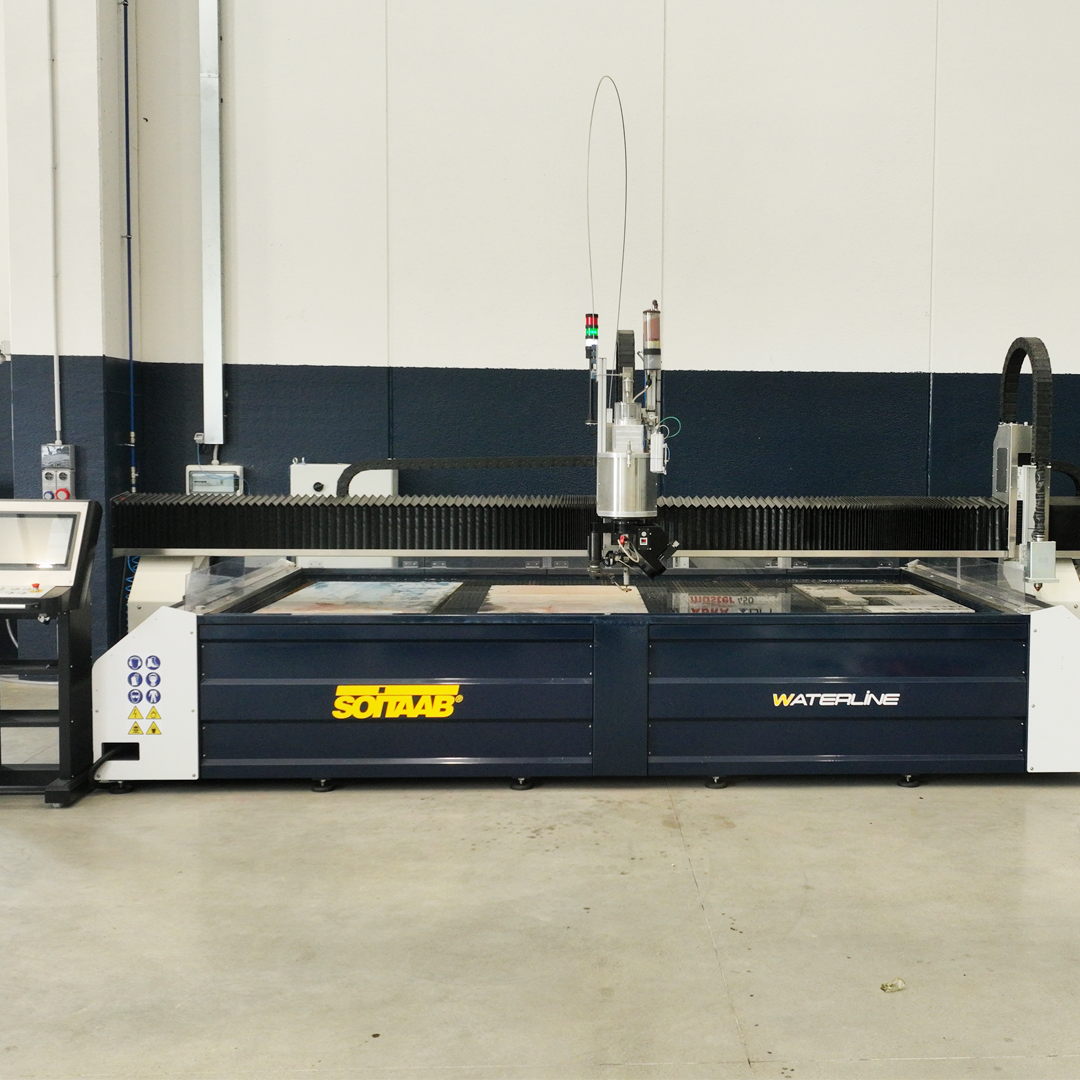

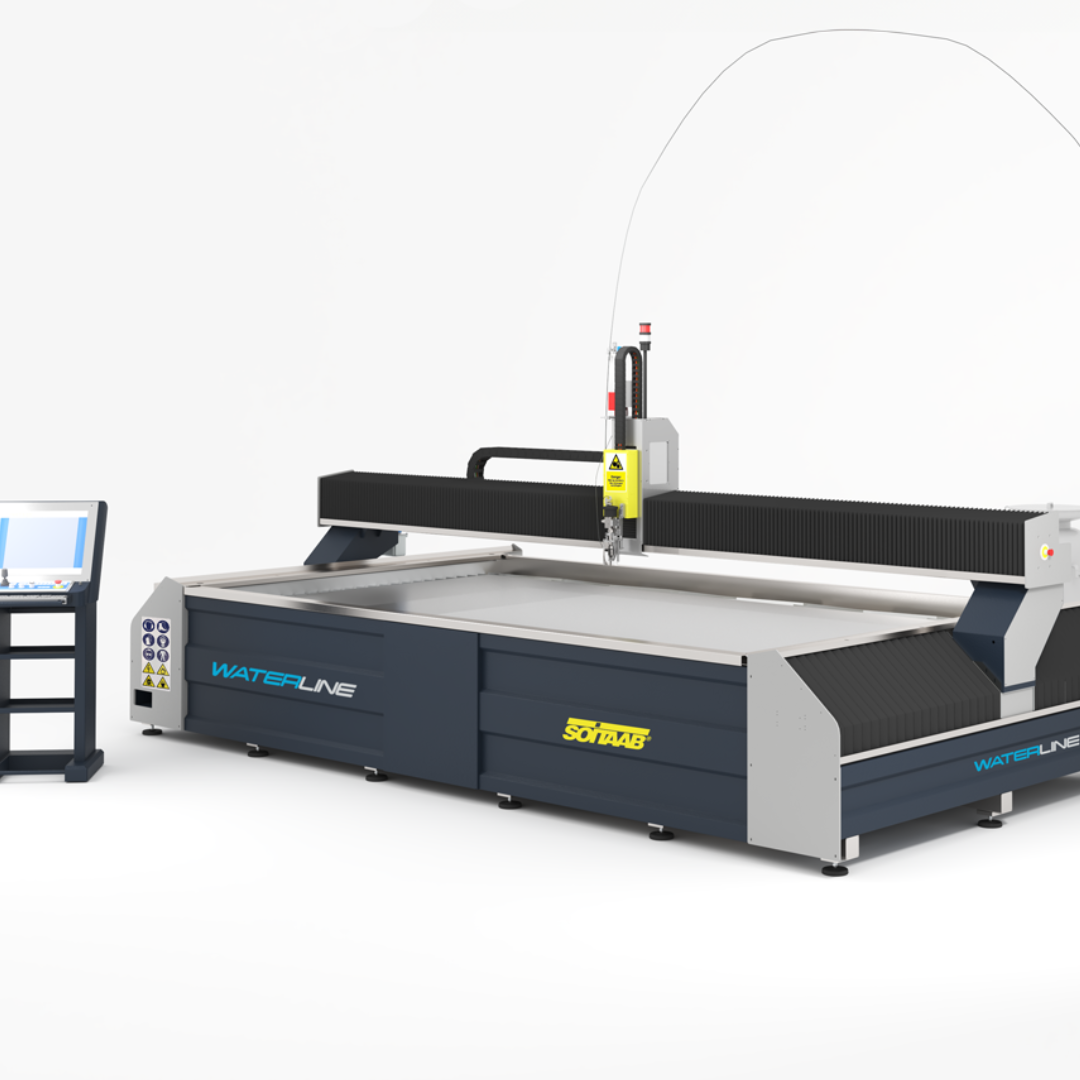

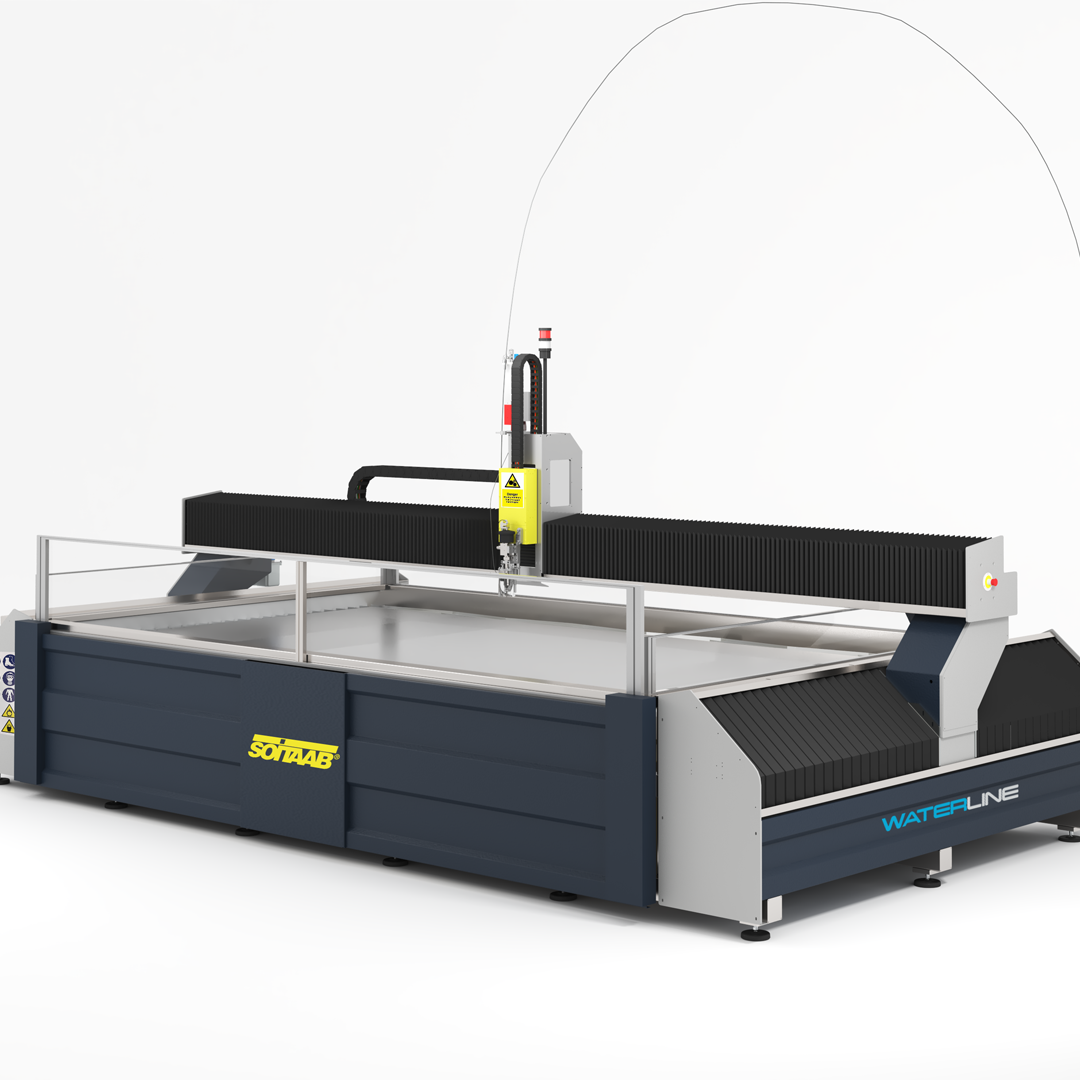

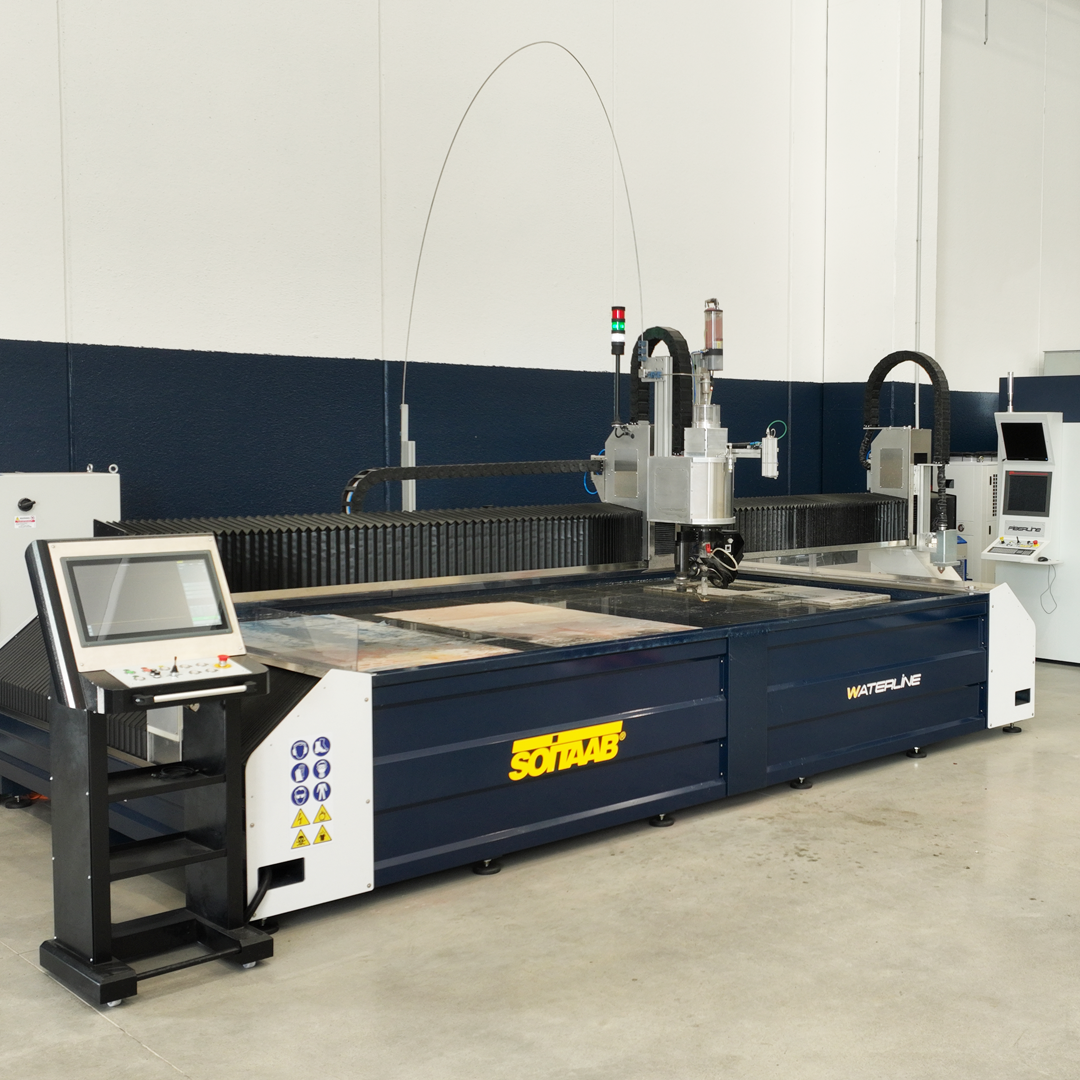

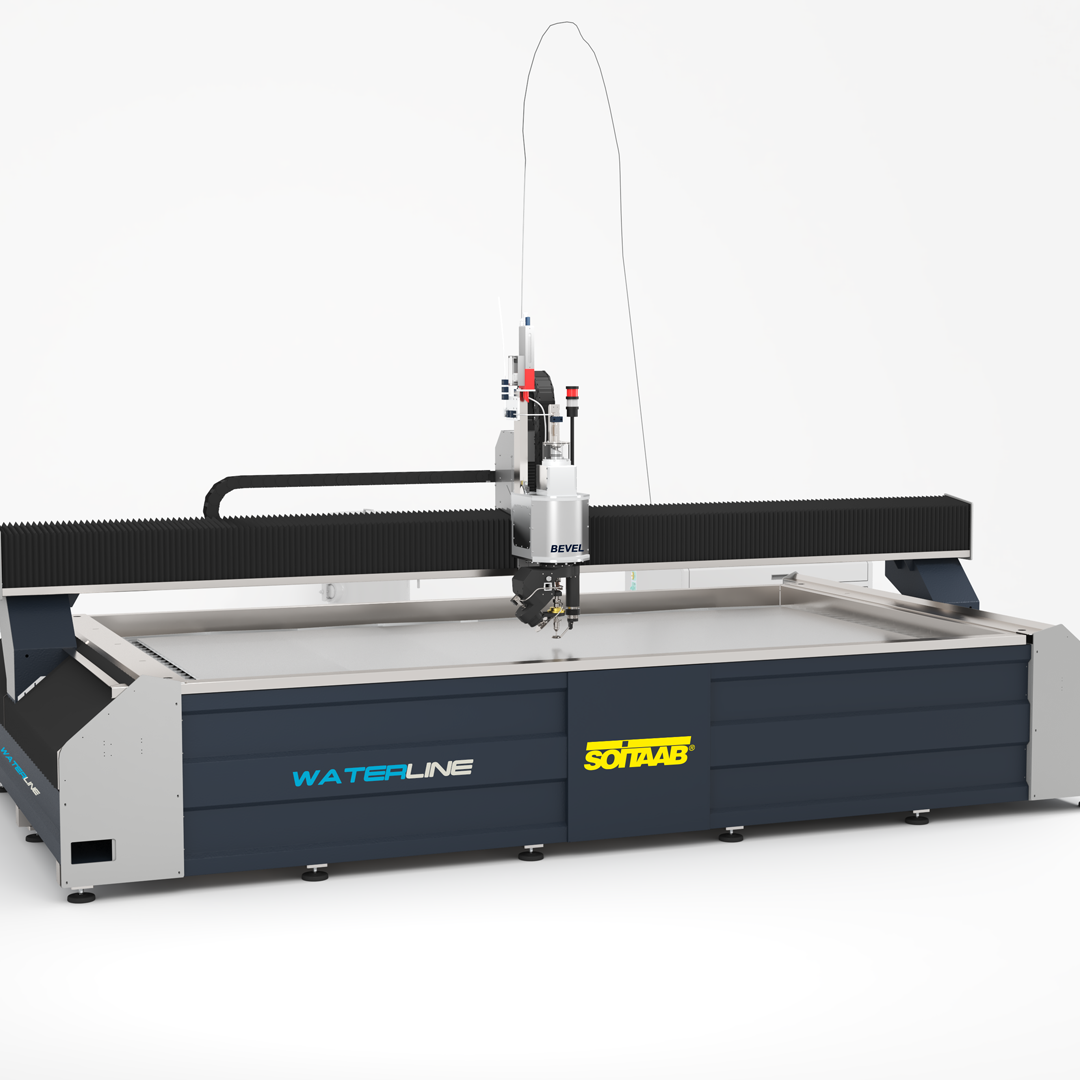

The WaterTech Line showcases Soitaab’s innovation and expertise in waterjet cutting technology, built on years of design and manufacturing leadership. Continuously evolving, the WaterTech range offers advanced solutions rigorously tested with global clients to meet the highest international standards.
With in-house engineered cutting tables, Soitaab shares its deep technical knowledge with customers, ensuring proven, high-performance results. Each machine is crafted with premium, carefully selected components to deliver exceptional performance across a wide range of applications. Designed for durability, WaterTech machines are fully protected, making them ideal for operation in the demanding and harsh conditions often encountered in waterjet cutting.
Main Features
- Dual-drive brushless motors and gantry control
- Rack and pinion drive system
- Linear guides on the longitudinal axis
- 2 linear guides on the transverse beam
- Self-lubrication system for all guides
- Bellows protection on all axes
- Stainless steel (optional) water and abrasive tank
- Pressurised two-stage abrasive metering system

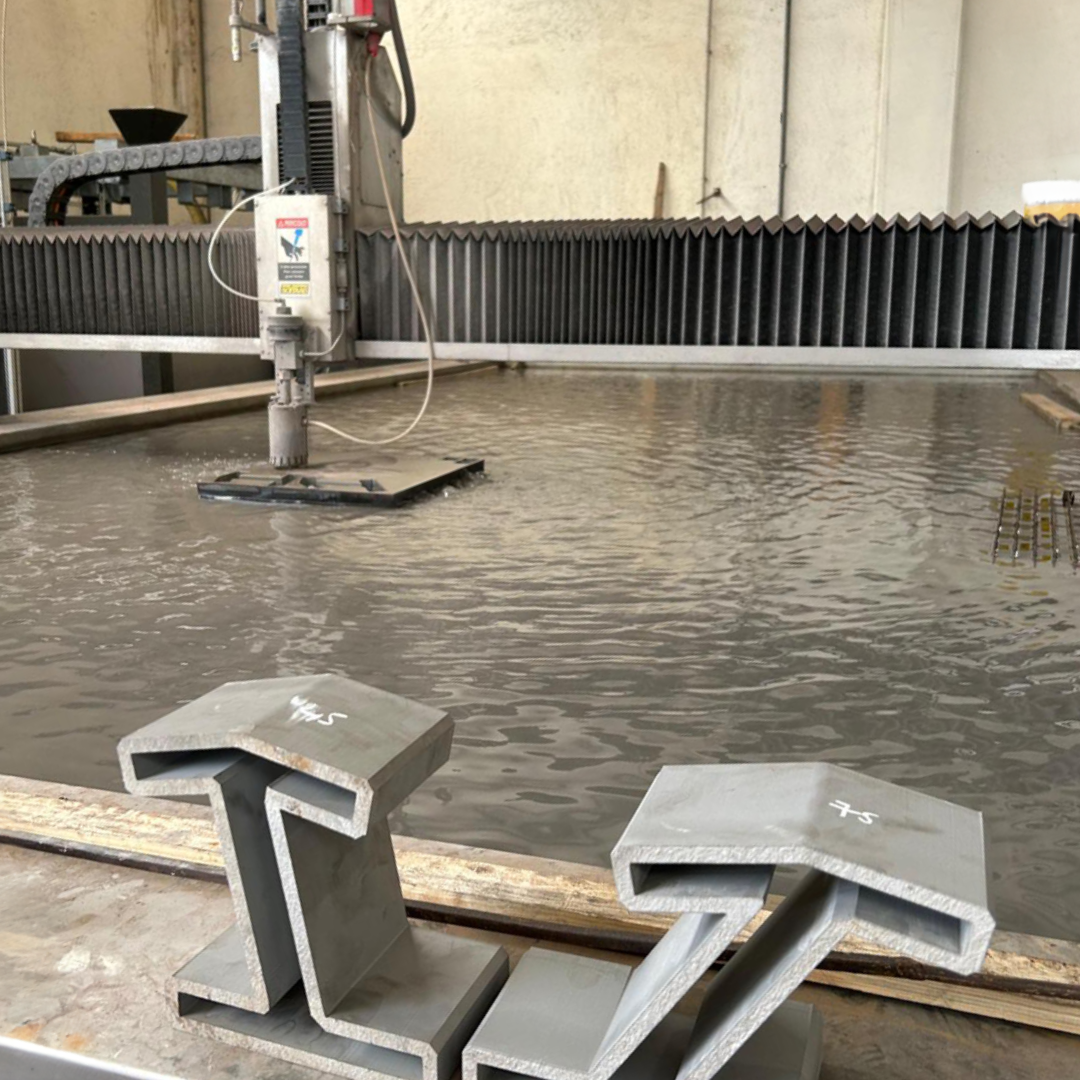

- Water table tank with integrated manual water level controls
- Ready for the future installation of an abrasive removal system
- Cutting tables embedded in the CNC allow the selection of quality levels from 1 to 5
WaterTech RED by Soitaab represents years of expertise in waterjet cutting technology, featuring top-quality design and high-grade components. Constantly evolving, WaterTech RED delivers exceptional precision and versatility, making it ideal across various market segments. Engineered with full protection for all mechanical components, it performs reliably even in the harshest environments. Available in power options from 30 hp to 150 hp, and pump pressures up to 6000 bar, WaterTech RED ensures robust performance for demanding cutting applications.
| Specification | Details |
|---|---|
| Working Area | 5 ft x 10 ft up to 10 ft x 40 ft |
| Motors (X, Y, Z) | Brushless |
| Driver (X, Y, Z) | Digital |
| Positioning Speed | 1575 IPM (40 m/min) |
| Positioning Accuracy | ± .004 in (± 0.1 mm/m) |
| Repeatability | ± .002 in (± 0.05 mm/m) |
| CNC Controller | SOITAAB CNC |
| Monitor | 15” LCD touchscreen |
| Data Communication | USB, Ethernet, LAN |
| Cutting Technologies | Waterjet with abrasive |
| Carriage Stroke (Z-axis) | 8 in (optional 12 in), 200 mm (optional 300 mm) |
