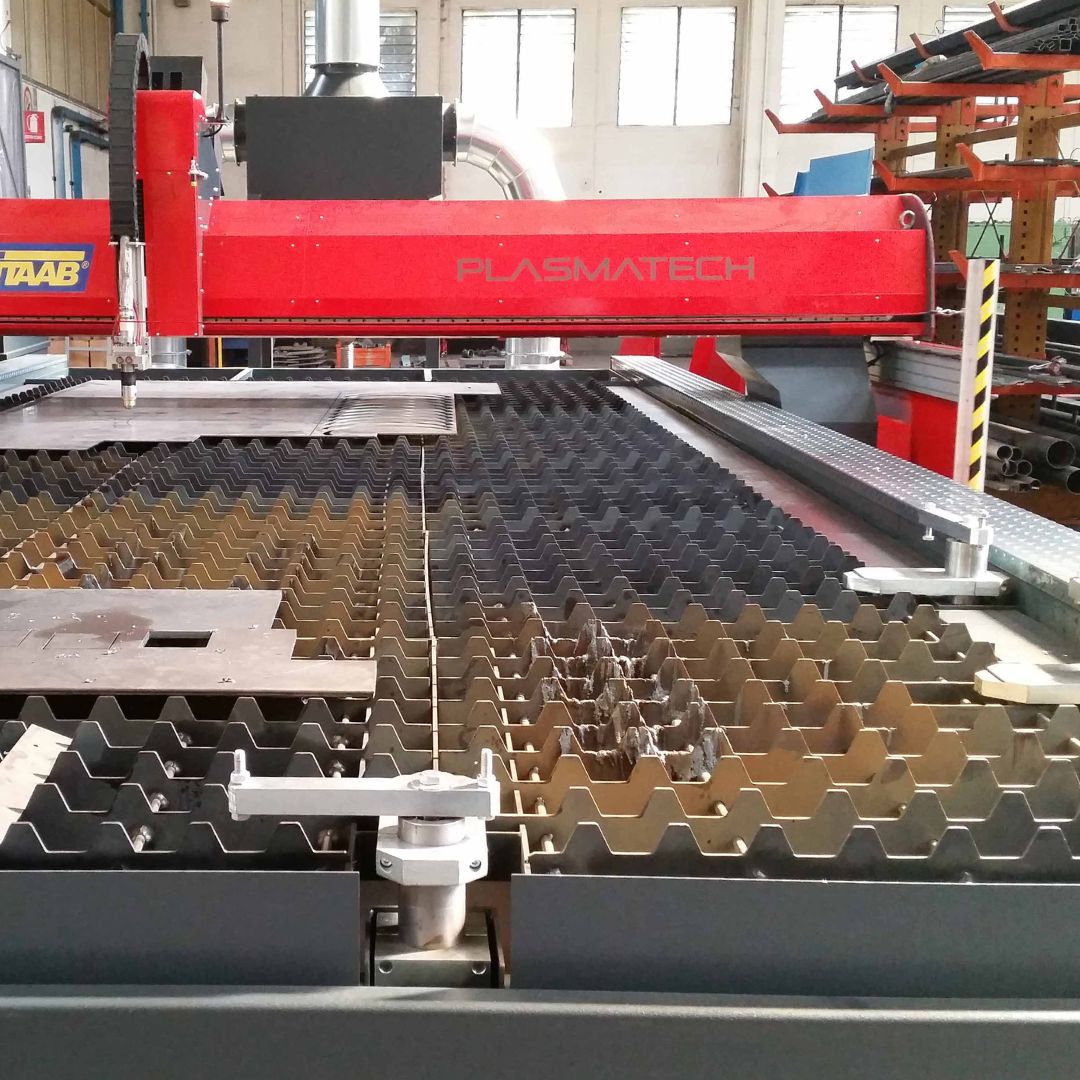

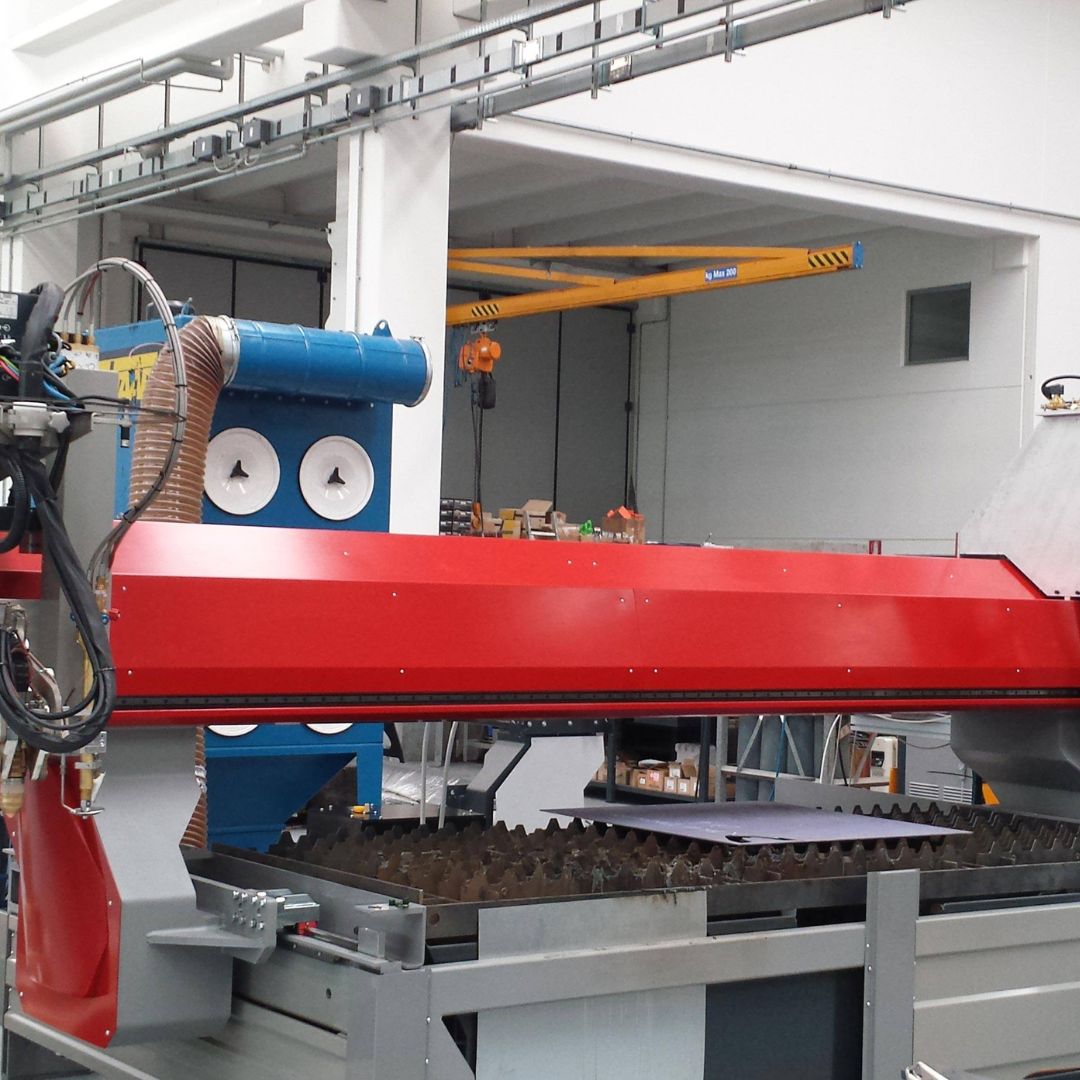

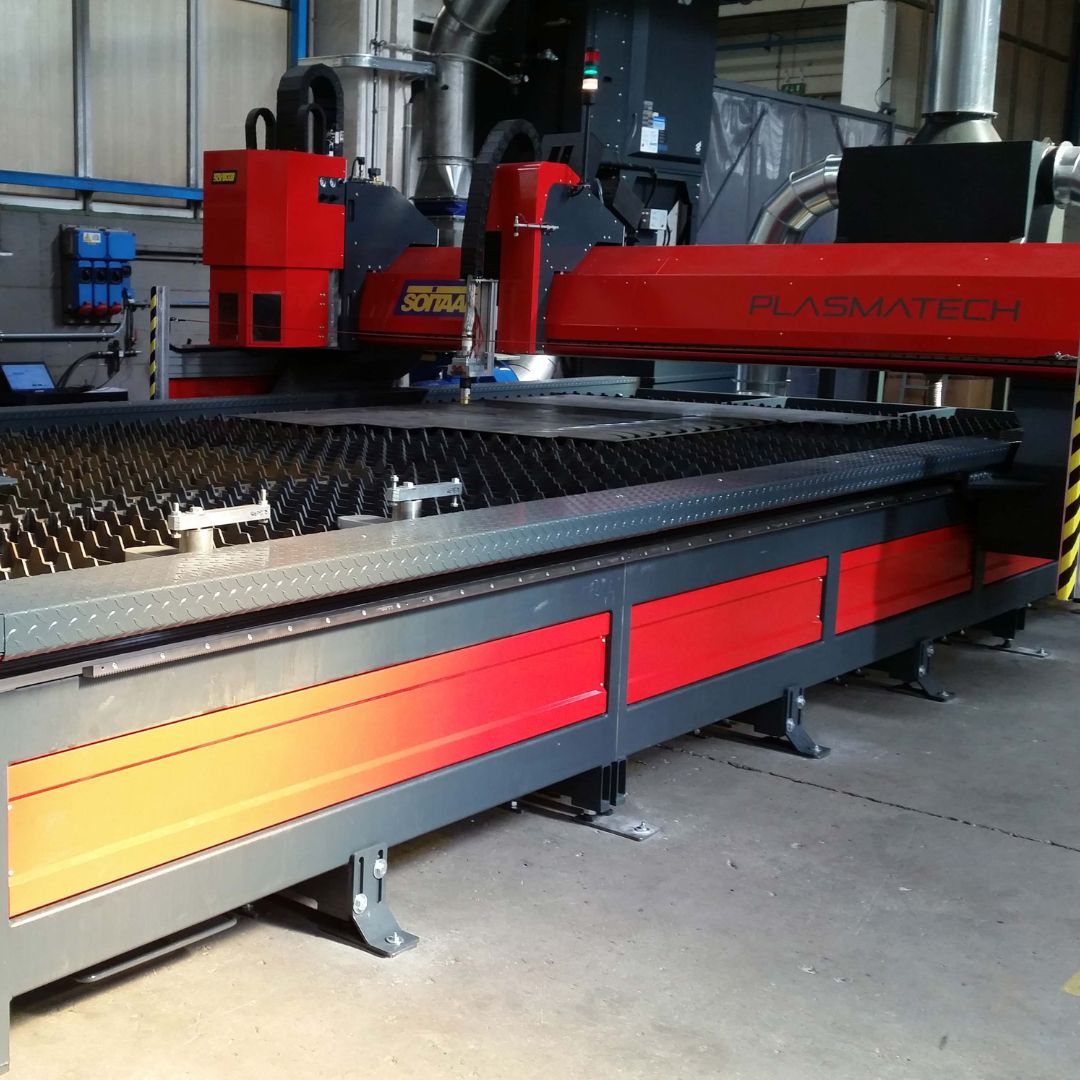

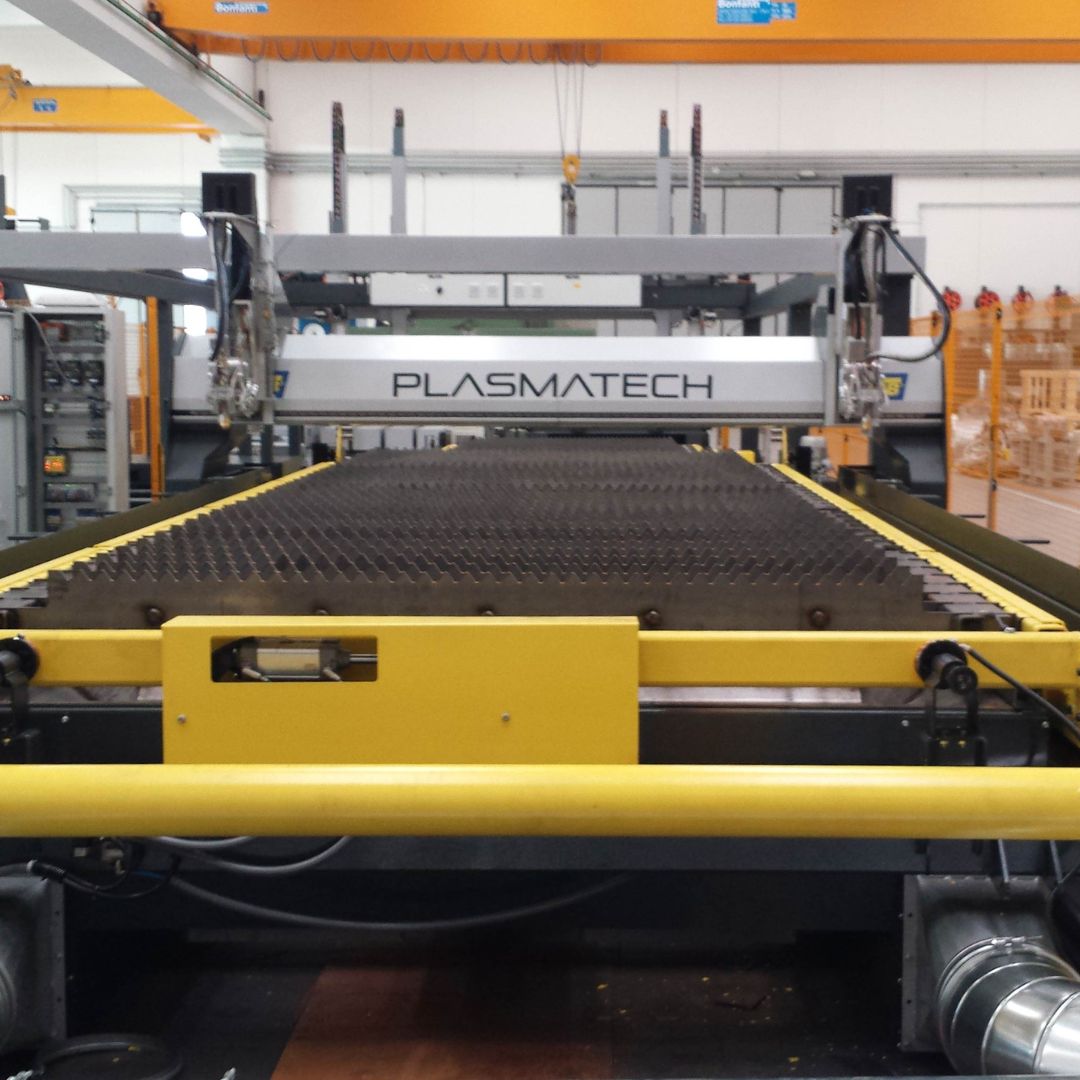

Plasma NOVA is engineered with cutting-edge technologies to tackle intricate production needs seamlessly. This versatile machine streamlines plasma and oxyfuel cutting, drilling, tapping, bevel cutting, pipe cutting, marking, and material handling in a single setup, optimising the production cycle. Designed for ferrous, stainless steel, and aluminium materials in medium to high thicknesses, Plasma NOVA ensures precision with dual brushless drives for gantry positioning. Its linear guideways and helical rack and pinion with downward-facing teeth resist slag deposits and dust, while CE safety compliance guarantees unparalleled safety standards, making it one of the safest machines available.
Accessories: Vertical oxy-fuel unit – (max n° 1) | Side extension of the beam (cantilever) for pipe cutting | Plasma bevel head | Automatic pallet exchange | Automatic plate alignment by laser pointer device

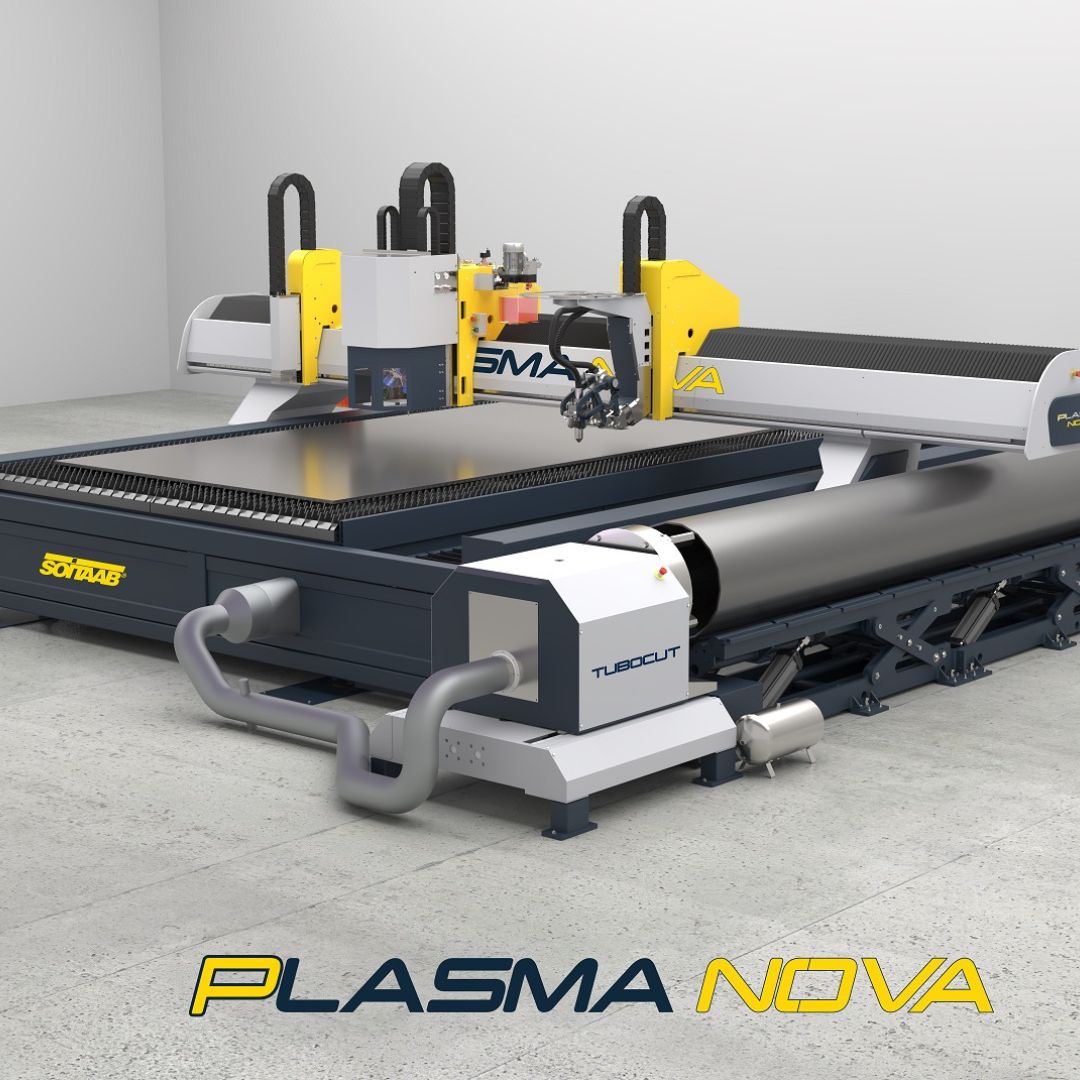

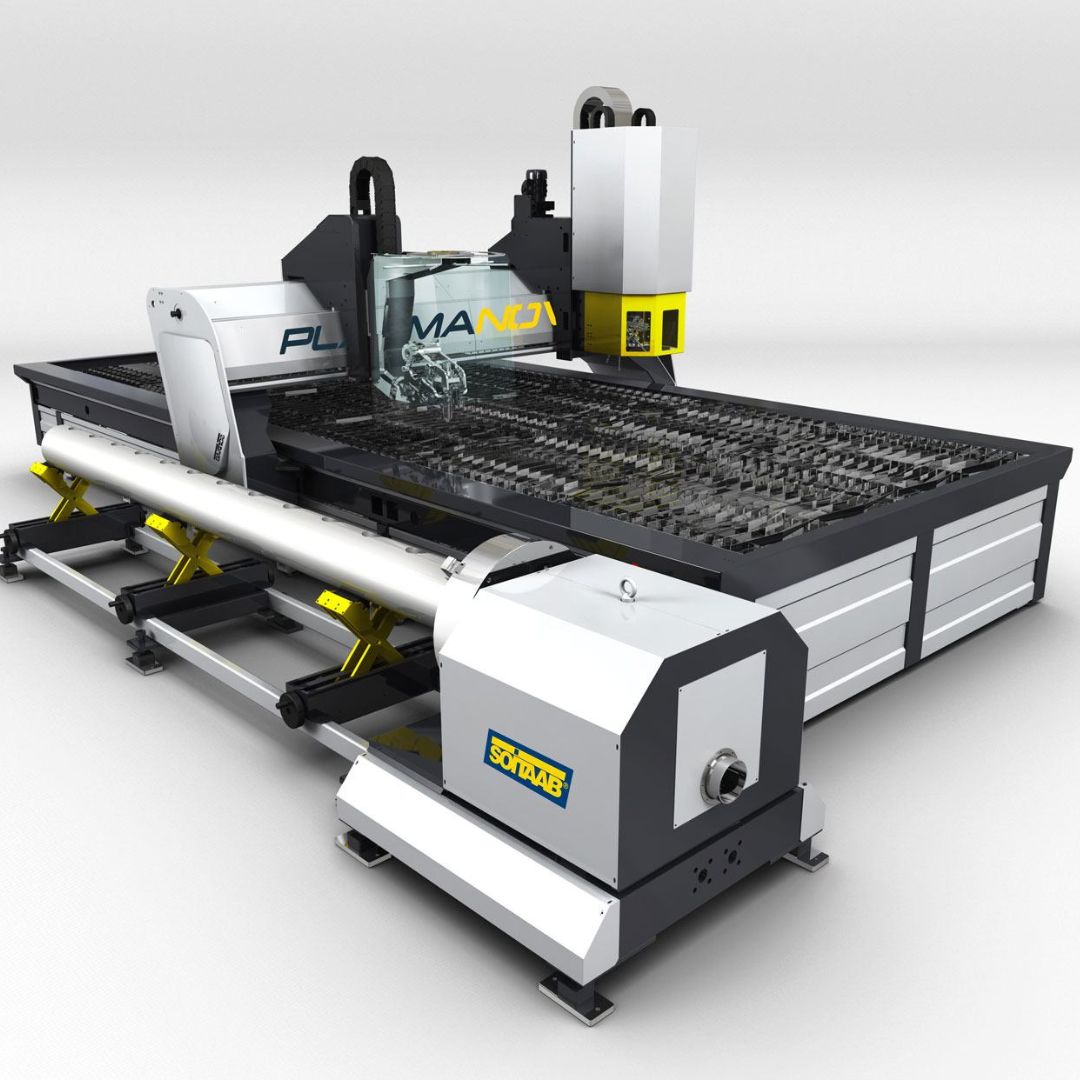

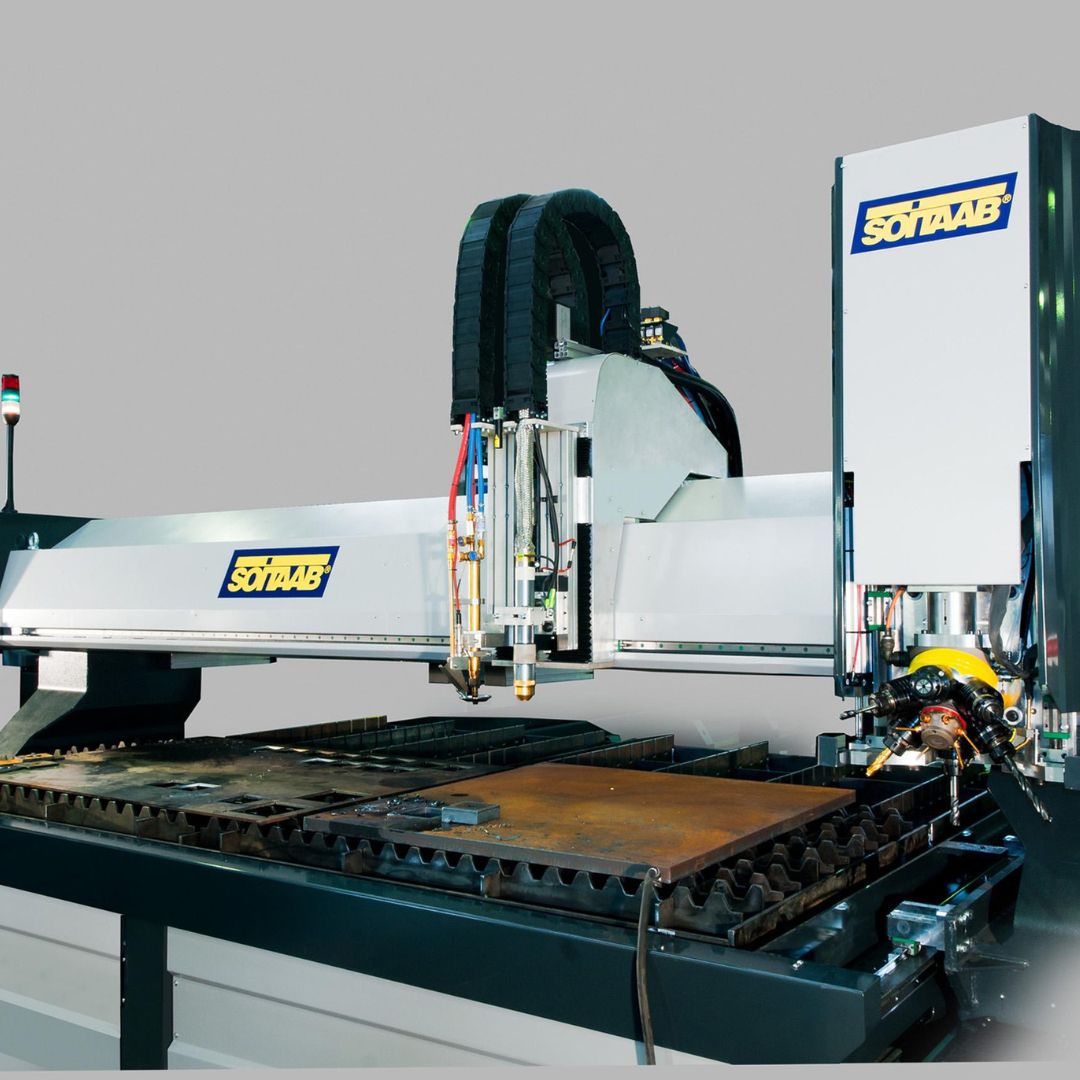

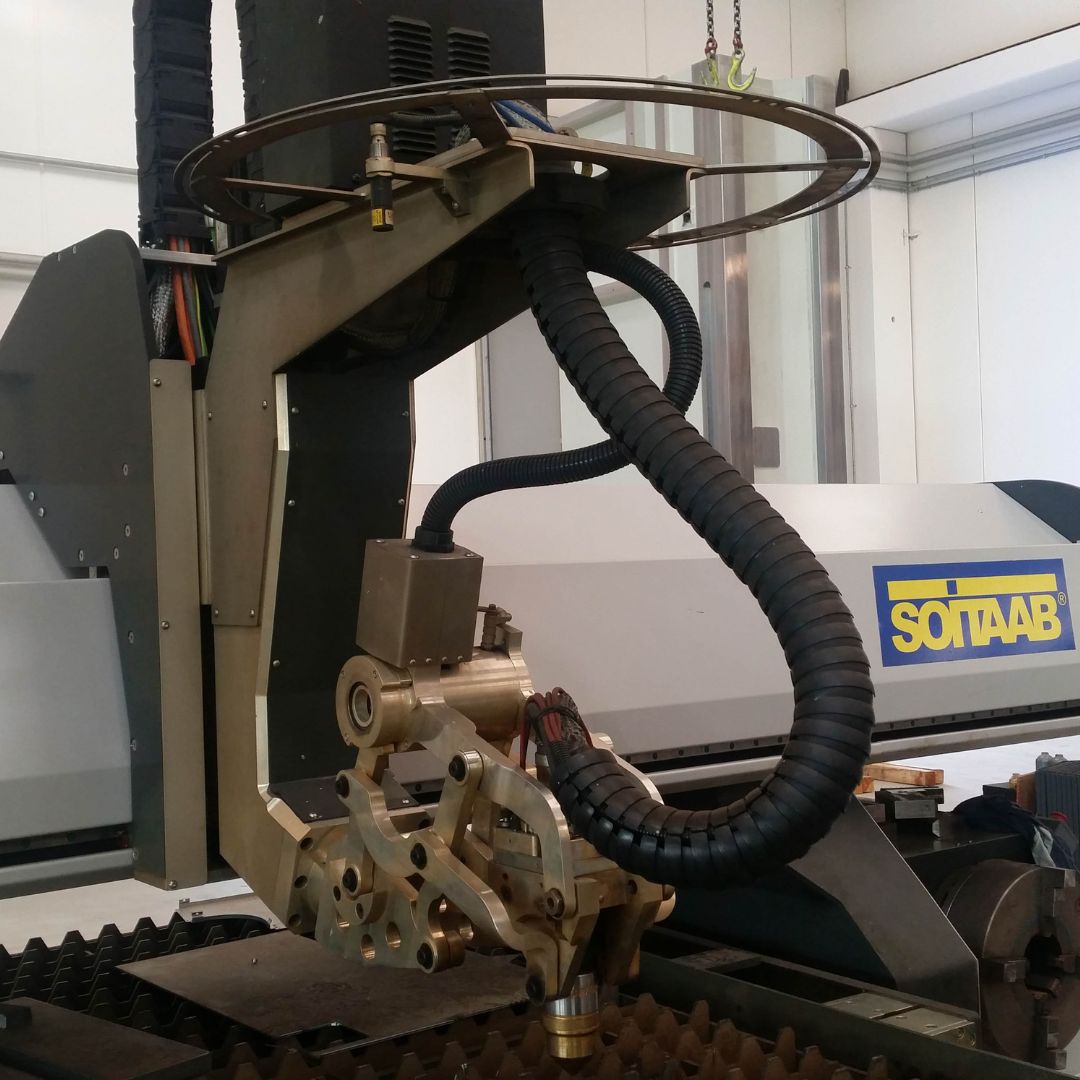

Special Accessories: TCT―Tubocut device for pipe cutting | RHDT―Drilling and tapping revolving head and tool changer | SPT―Programmable bevel head | MDS―Marking system | OFC―Oxyfuel carriage | SDP―Special drilling pre-hole for thick plate oxy-fuel cutting
Main Features
- One-piece welded frame made from square prole beams
- The entire assembly is machined in one position on Soitaab’s 16 ft. x 65 ft. CNC boring and milling machine
- The integrated cutting table is completely stand-alone
- The table is divided into sections focusing on fume extraction under the torches
- Table dampers automatically opened in 2 lateral channels
- Side access scrap drawers for easy scrap removal

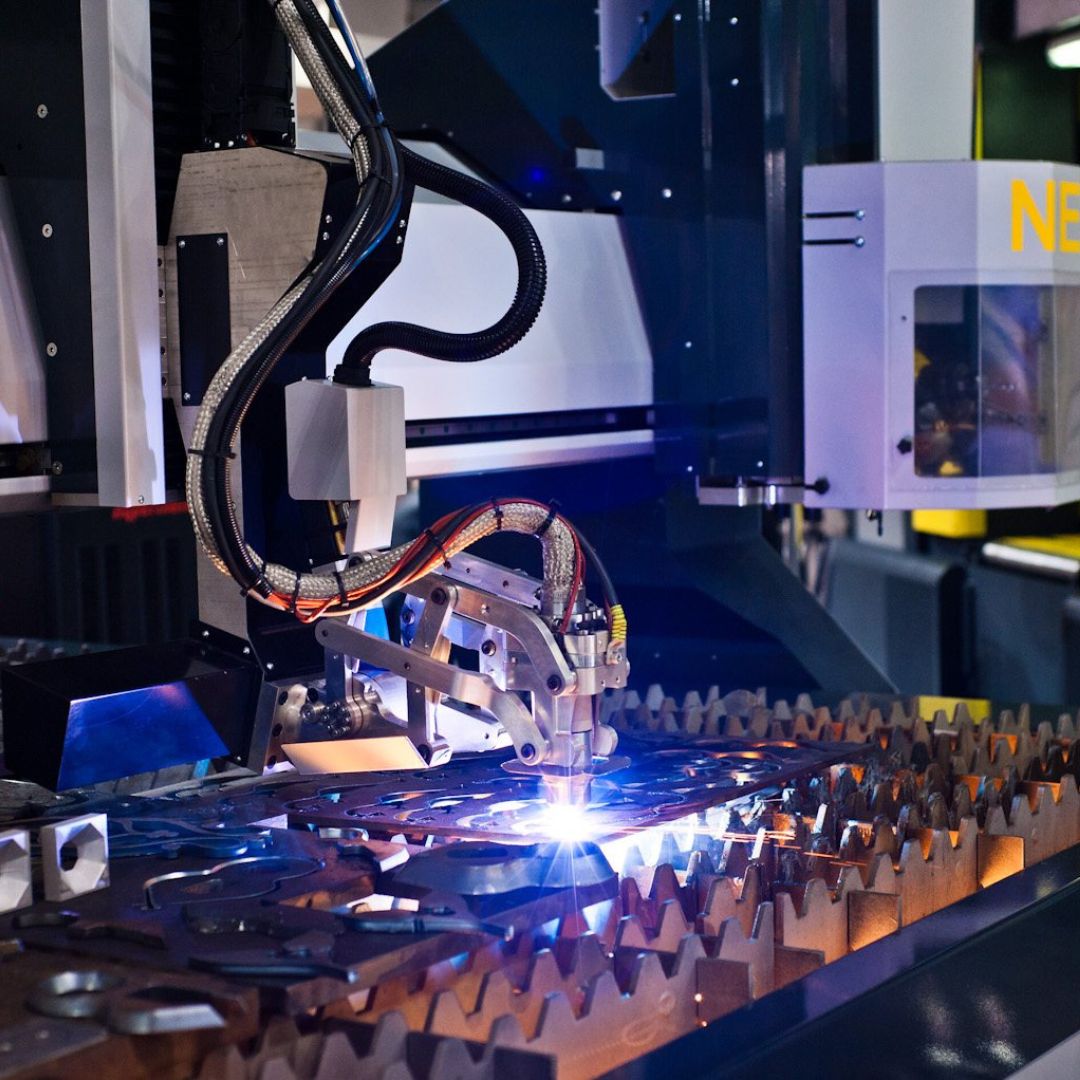

- Servo-driven plasma carriage controlled by the CNC
- Z-axis with automatic arc voltage height control (AVC)
- TAG automatic initial positioning by touch sensing or Ohmic contact for thin materials
- Magnetic torch breakaway anti-collision device
- SOITAAB Human Machine Interface (SHMI)
- Touch screen monitor with user-friendly CNC control
| Specification | Details |
|---|---|
| Working Area | From 1.5 m x 3 m up to 3 m x 14 m |
| Carriage Stroke Z Axis | 300 mm (vertical) |
| Motors (X, Y, Z) | Brushless |
| Driver (X, Y, Z) | Digital |
| Positioning Speed | 70 m/min |
| Repeatability | ± 0.05 mm/m |
| CNC | SOITAAB CNC |
| Monitor | 15” touch panel screen |
| Data Communication | USB – Ethernet – LAN |
| Cutting Technologies | Plasma |
