Crafted to address the demand for both quality and cost-effective thermal cutting solutions, LINEA Tech PRO presents a diverse array of applications, including oxy-fuel flame cutting, plasma cutting, and marking.
Operated by CNC, the high-definition plasma cutting feature boasts precise parameter management, ensuring optimal cutting for intricate details, small holes, slots, and complex shapes. Enhanced further by CNC-controlled automatic gas consoles and a database featuring oxyfuel cutting parameters, LINEA Tech PRO stands as the ultimate choice for achieving both economic efficiency and high-performance cutting capabilities.
Main Features
- Dual-side drives with brushless motors and digital drives
- Smooth rack and pinion motion with preloaded spring assures accurate positioning with minimum backlash

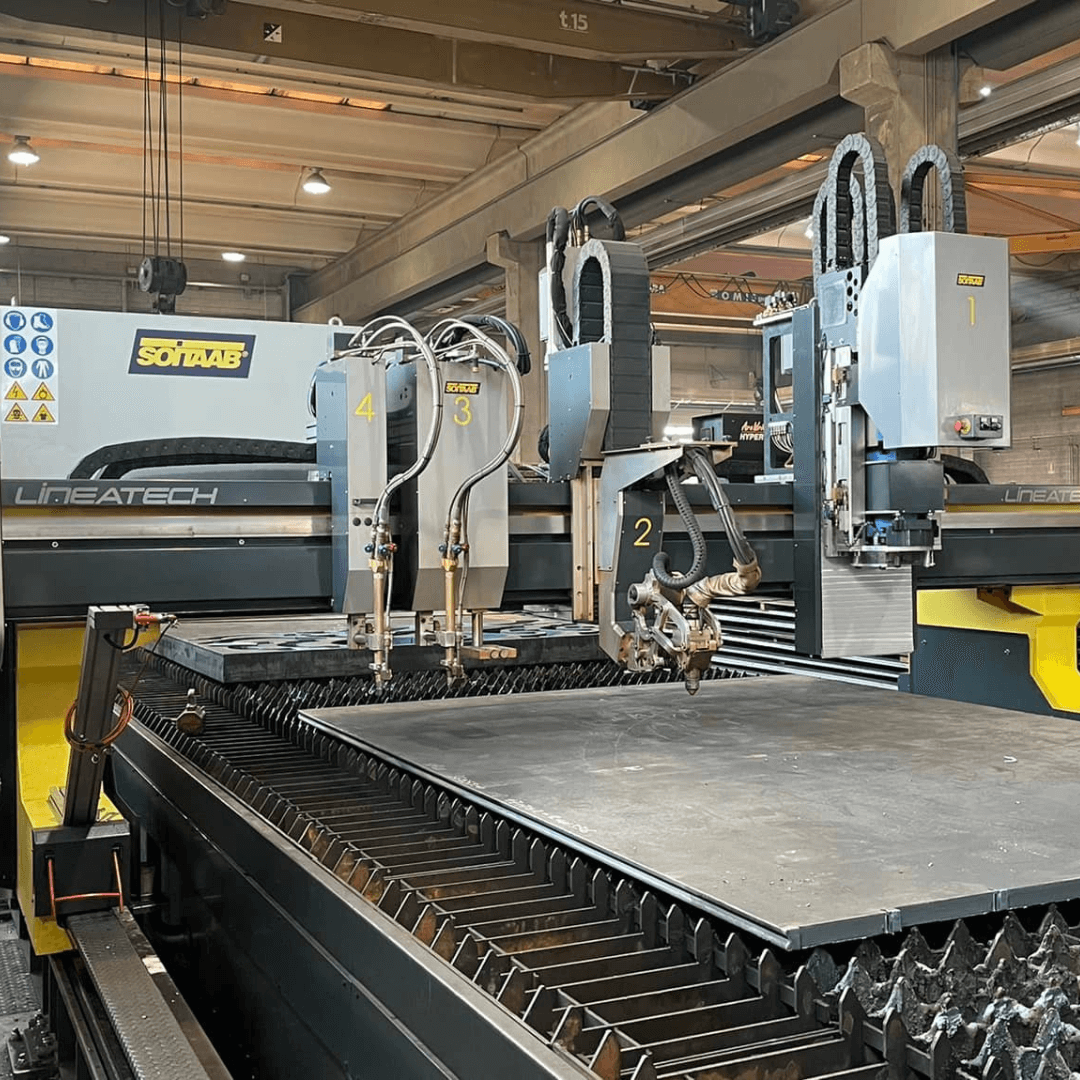

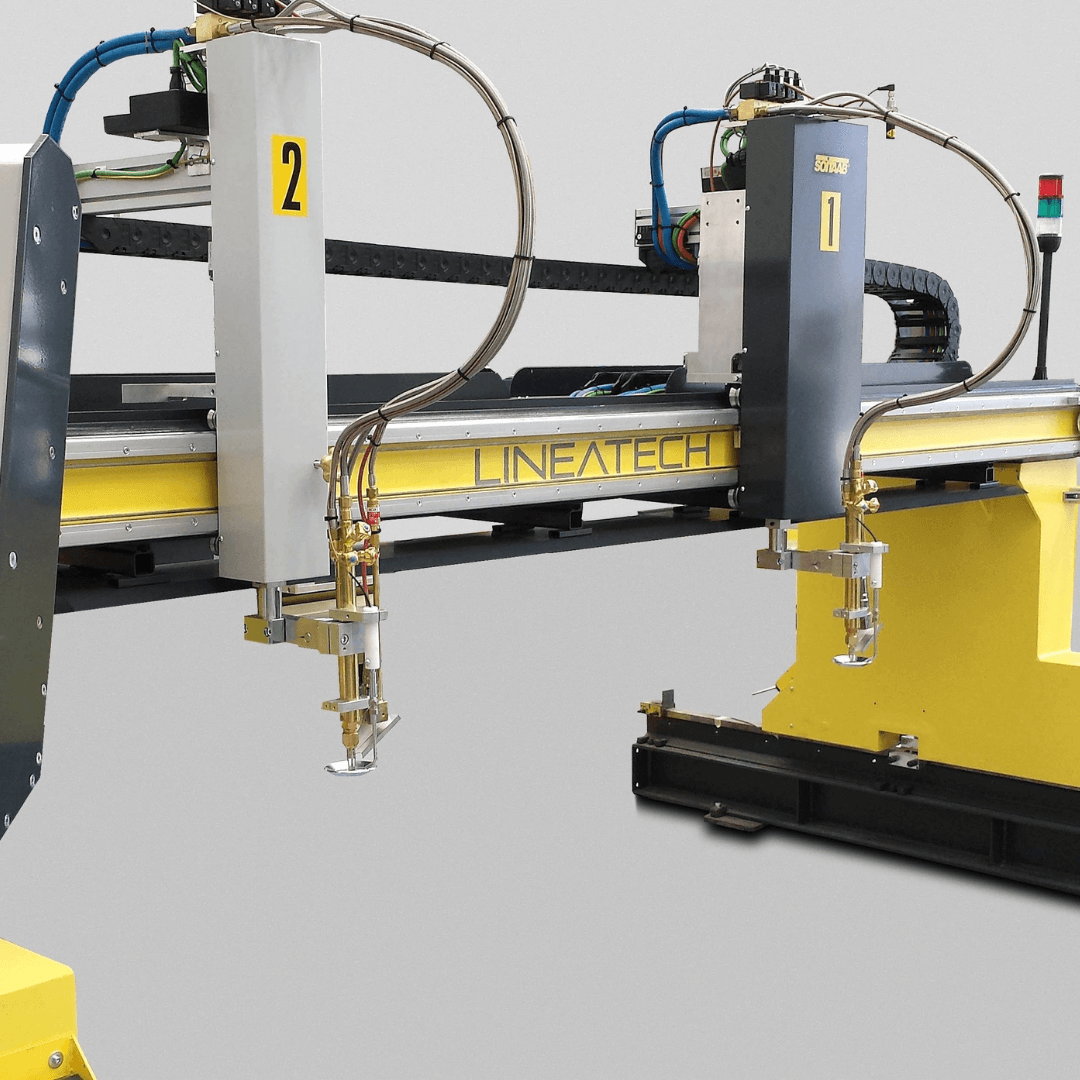

- Can be equipped with up to 4 oxyfuel stations and 1 plasma station
- Plasma cutting width up to 3.0 m on a 4.0 m wheelbase
- Oxyfuel gas distribution by 3 proportional valves controlled by the CNC
- Automatic gas management controlled by the CNC
- Library of 30 shapes with fixed cutting parameters, expandable to 78 shapes

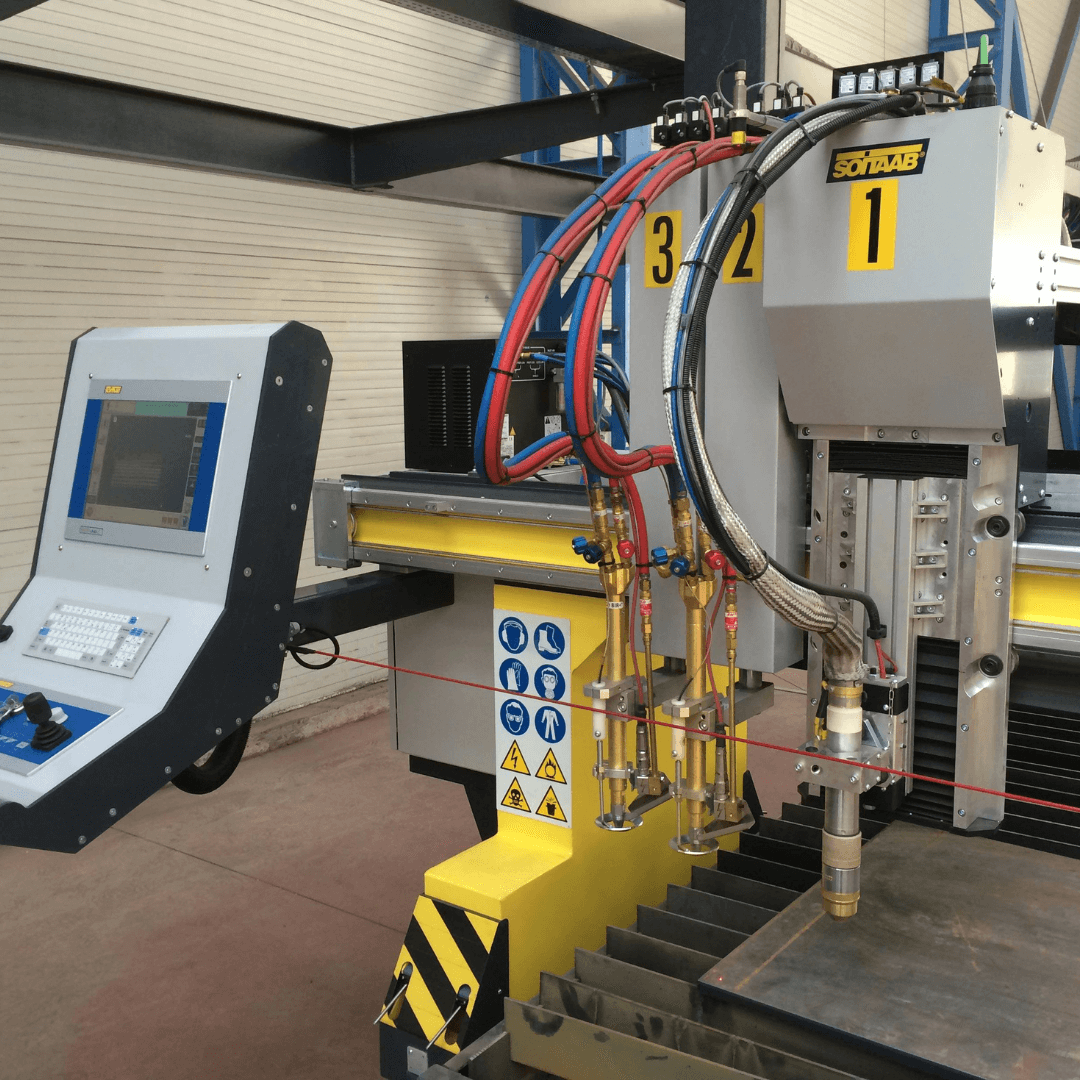

- LCD control panel with 15″ TFT colour touchscreen
| Specification | Details |
|---|---|
| Rail Span (Min–Max) | 6.5 ft up to 13 ft |
| Machine Length | 6.5 ft (2.0 m) |
| Machine Useful Length with 4 m Rails | 6.5 ft (2.0 m) |
| Longitudinal Rails Beam Support | HEB – STD 120 mm |
| Transversal Beam Construction | Single |
| Longitudinal Motorization | Dual side drives |
| Rack | Vertical teeth |
| Quality Standard | ISO 9013 |
| Max Number of Slave Carriage (Plasma) | 0 |
| Max Number of Slave Carriage (Oxy) | 4 |
| Gas Distribution (Oxy) | Automatic |
| Max Cutting Thickness (Oxy) | 6 in (150 mm) |
| Gas for Oxy Flame | Oxygen, Propane, Methane, Acetylene |
| Max Plasma Power | Up to 400 Amps |
| CNC Type | Soitaab II |
| Database (Oxy + Plasma) | Optional |
