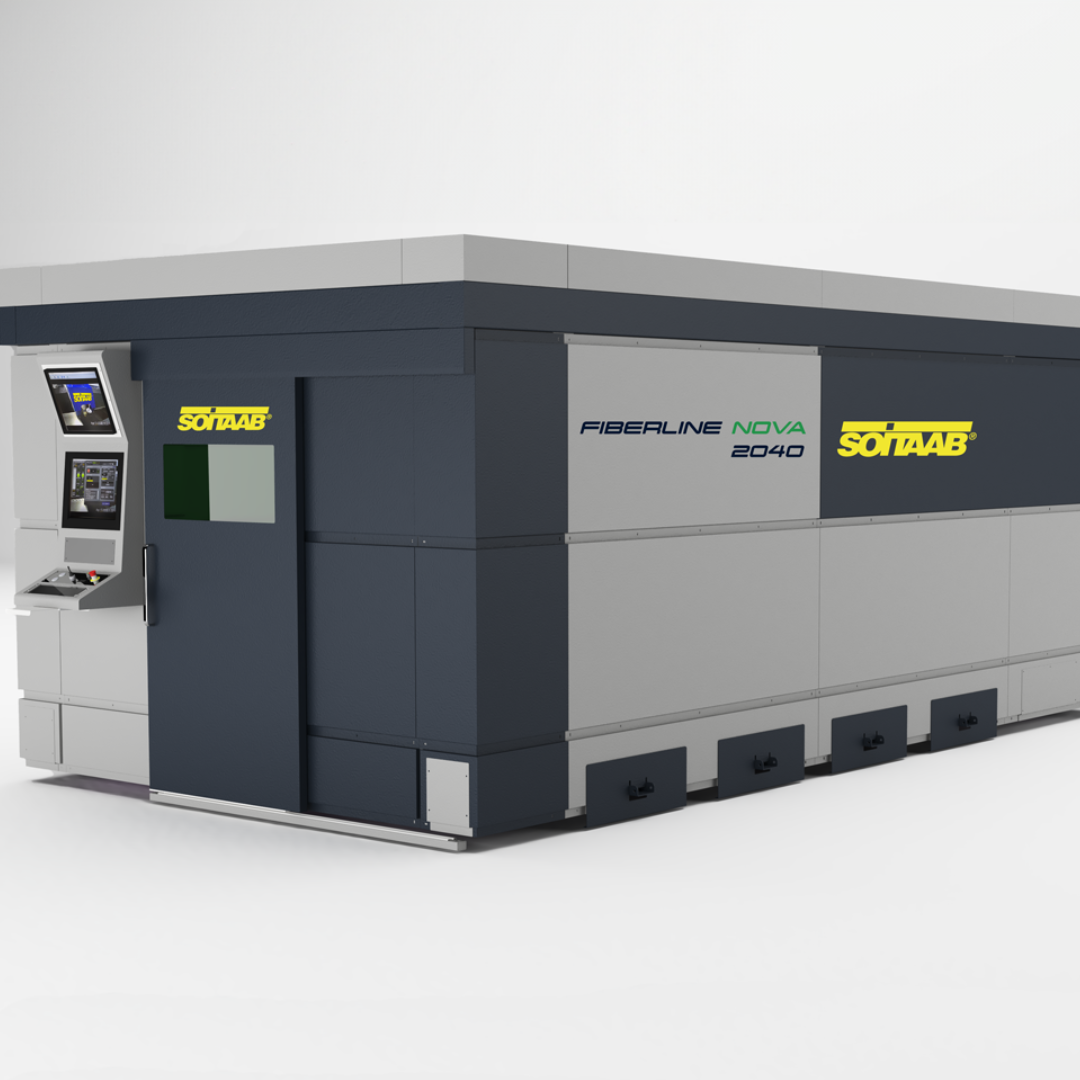

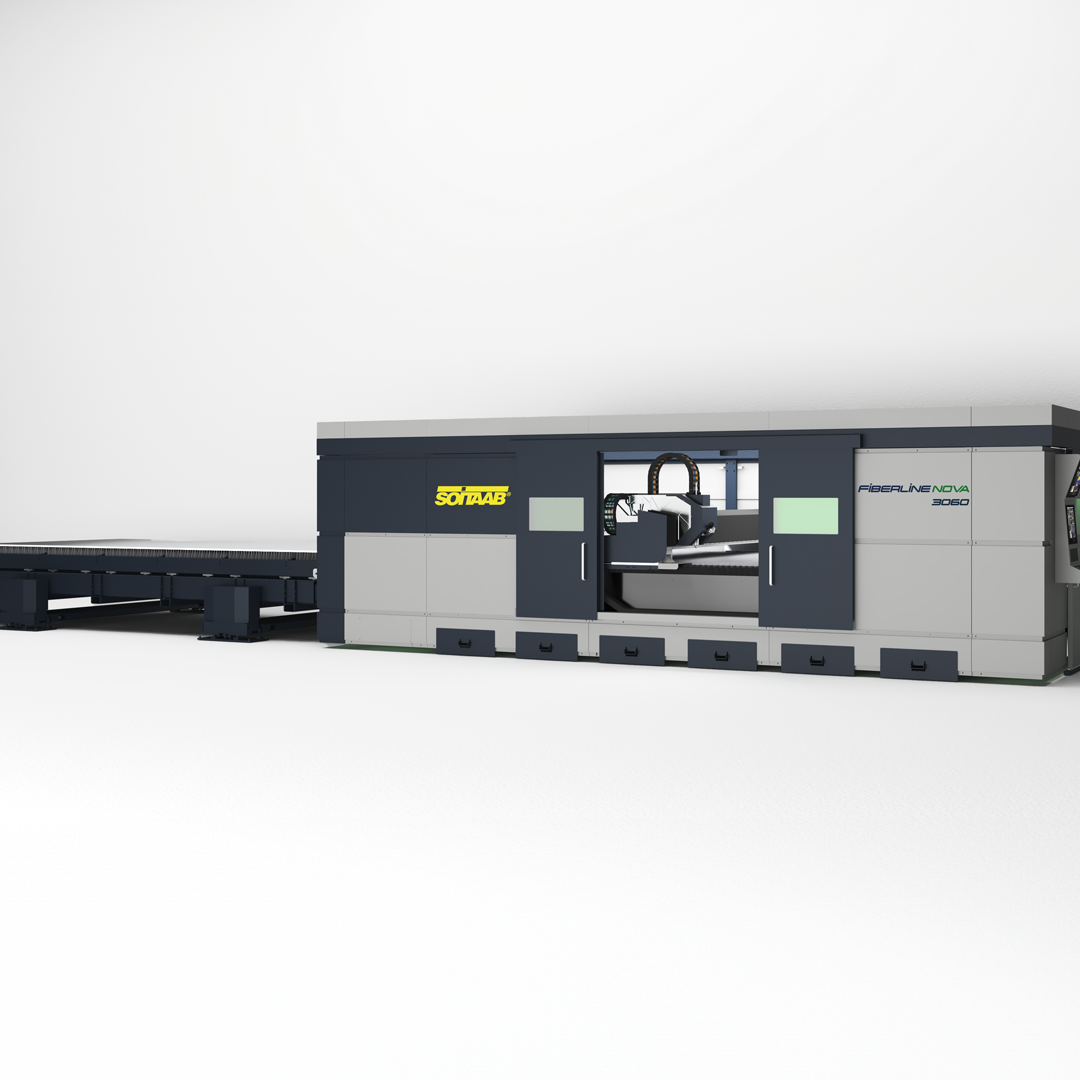

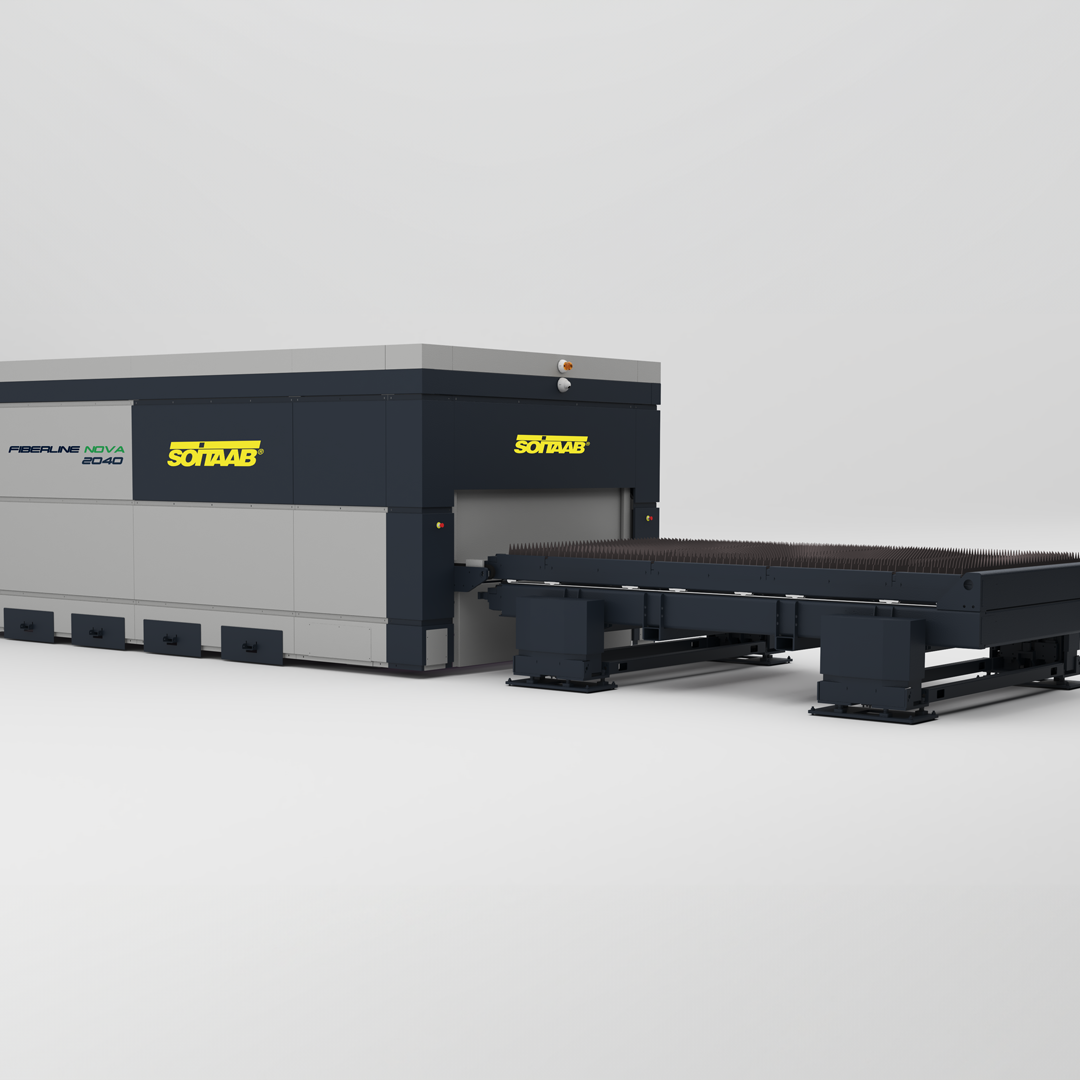

Discover the pinnacle of laser cutting innovation with Soitaab’s new FiberlineS range. Our cutting-edge fibre laser machines combine unmatched versatility, accuracy, and high-performance capabilities. With Fiber Lasers ranging from 6kW up to 30kW, and standard cutting areas from 5′ x 10′ up to 10′ x 80′ and larger, we offer systems tailored to diverse needs and scales.
Experience elevated productivity and enhanced reliability across a variety of materials and thicknesses. Our machines ensure seamless operation and consistent results, enabling you to meet the demands of any project with ease.
Unlock the highest level of cutting quality with our intuitive parameter-driven CNC interface. With a simple yet comprehensive process control, achieve precision like never before. FiberlineS offers a wide range of work areas with the highest operating speeds, ensuring optimal efficiency and performance.
Main Features

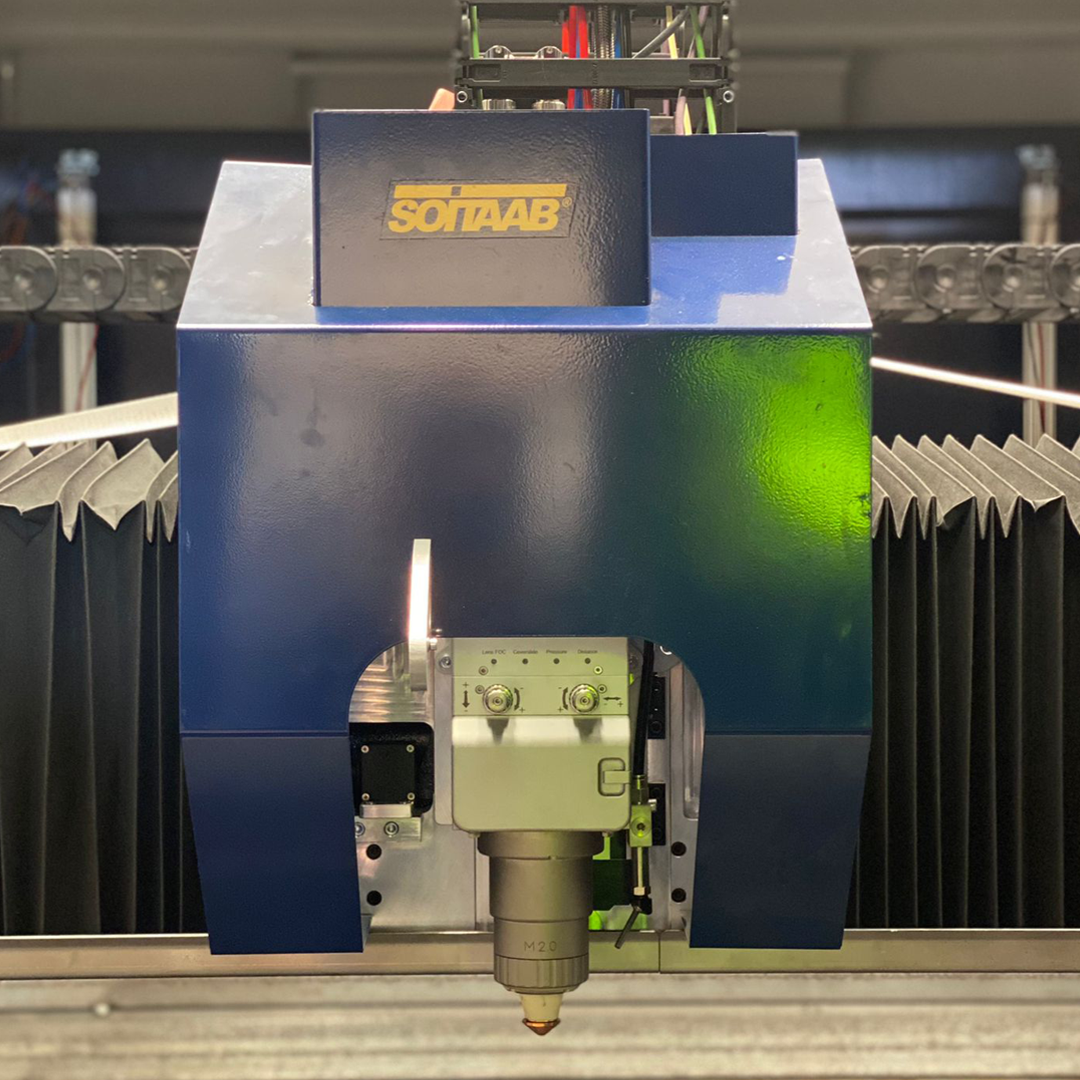

- Laser cutting head equipped with a capacitive sensor
- Motorised focal lens (+10 /-30)
- Nozzle cooling system
- Cross jet for quick piercing
- Air-tight dust protection system built into optics
- Drawer containing the protected lens for a quick replacement of optics
- Collimator lengths from 65 to 100
- Focusing lengths from 150 to 210

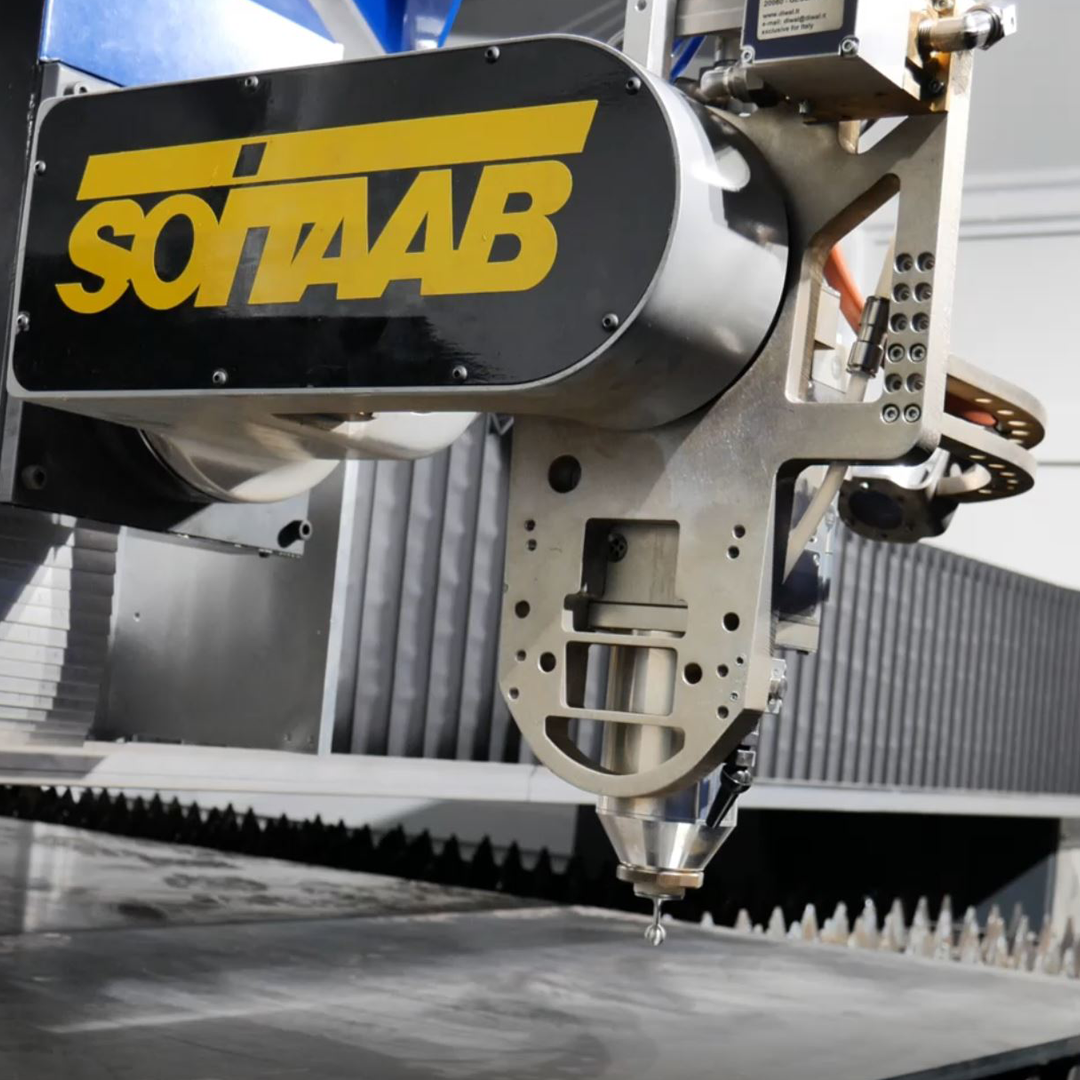

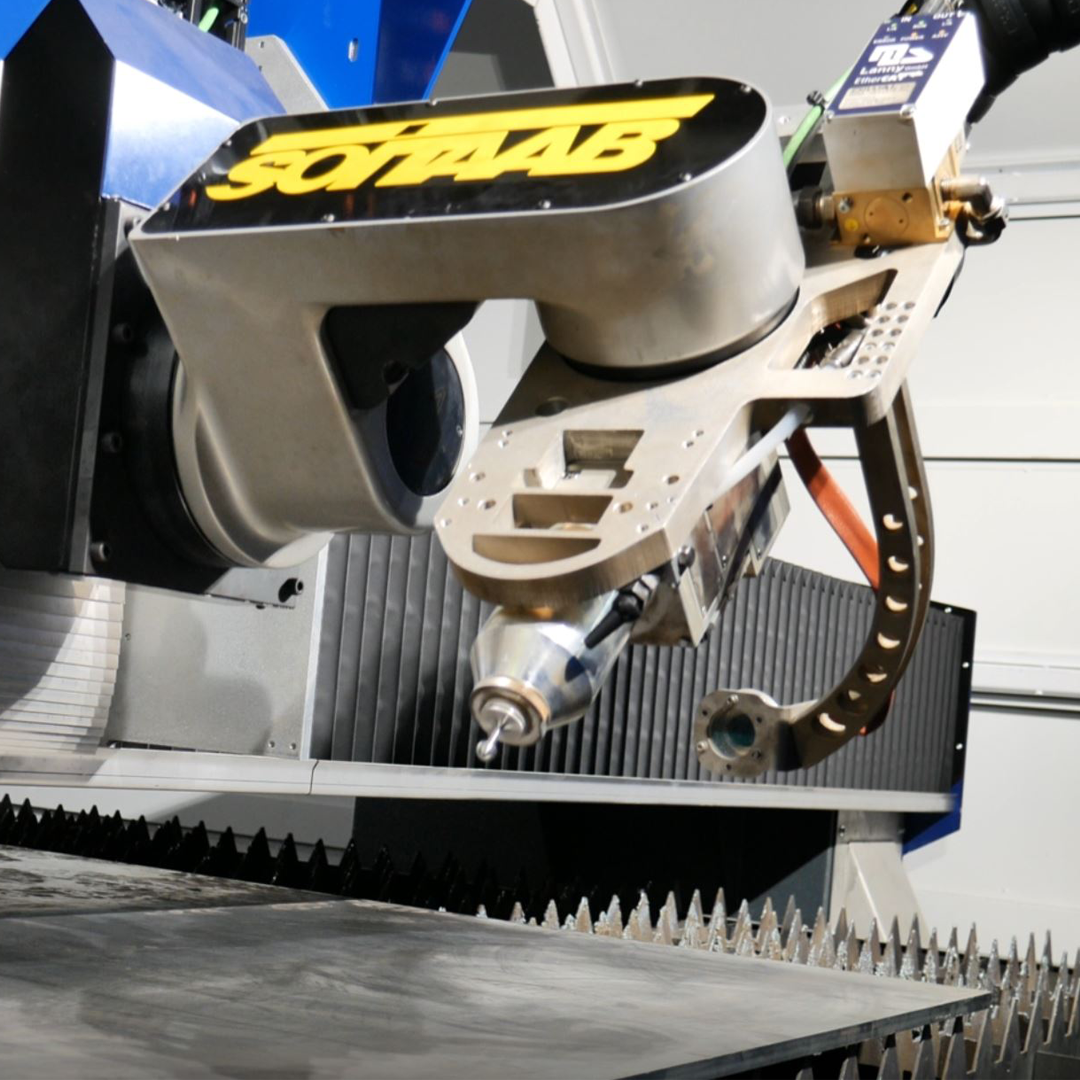

- Vertical Cutting (2d), or Bevel Cutting up to+/-45°
| Specification | Details |
|---|---|
| Working Area | 2,500 x 6,000 mm / 3,000 x 6,000 mm / 3,000 x 120,000 mm / 3,000 x 24,000 mmOthers on request |
| Max. Speed | 220 m/min |
| Acceleration | 1g |
| Precision | Position deviation Pa = 0.05 mmAverage position scatter Ps = 0.03 mm |
| Available Powers | 2, 3, 4, 6, 8, 10, 12 kW |
| Cutting Thicknesses | Carbon Steel: 1 to 30 mmStainless Steel: 1 to 25 mmAluminum: 1 to 25 mmCopper: 1 to 12 mmBrass: 1 to 12 mm |
