The Patmark Mini (also known as PM2 Mini) provides portable, permanent marking capability, combining compact design with industrial-grade performance. Ideal for fabricators, maintenance, and quality control teams, it marks on metals up to HRC62, plastics, wood, and paper. Powered by a lithium-ion battery, it offers wireless control via app (iOS/Android) and Windows software via Wi-Fi or USB. Built for tight spaces and on-the-go operations, it replaces traditional punch marking with digital precision.
Technical Specifications
| Category | Details |
|---|---|
| Power Supply | AC Adaptor (optional): AC100V–240V 50/60Hz |
| Battery: 25.2V, 2.0Ah | |
| Battery Charger: Input 100–240V 50/60Hz | |
| Weight | With AC Adaptor: ~1.4 kg (3.0 lbs) |
| With Battery: ~2.0 kg (4.4 lbs) | |

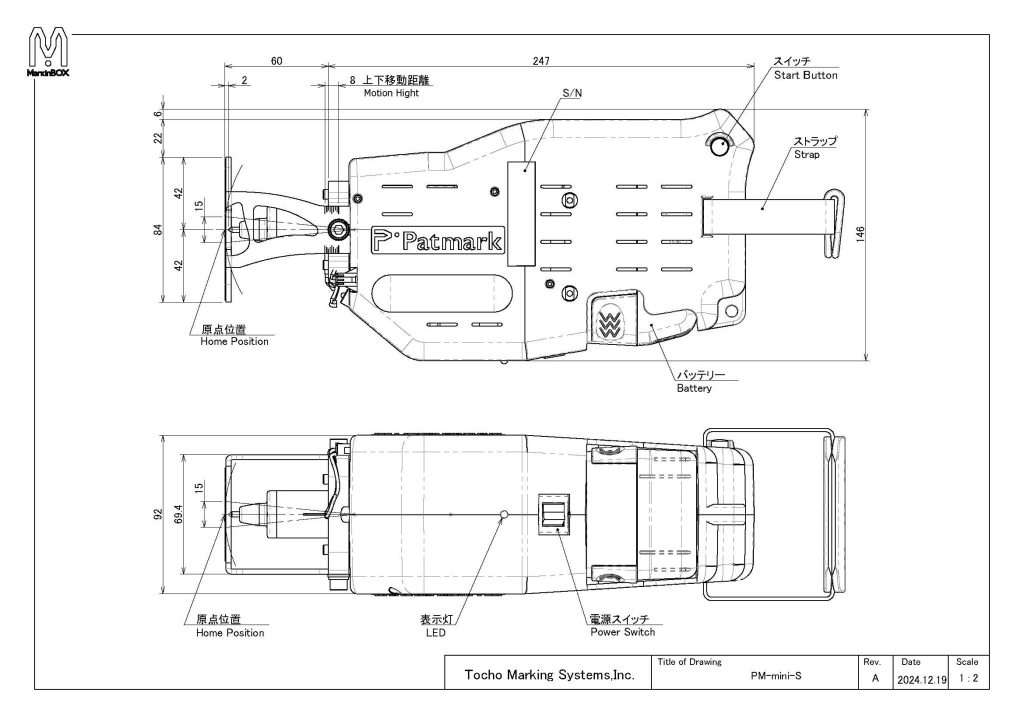

| Dimensions | ~ 89.2mm × 202.5mm × 304.9mm (with battery) |
| Marking Area | 15mm × 15mm (0.6″ × 0.6″) |
| Software / Connectivity |
|
| Markable Materials | Metal (up to HRC62), plastic, paper, and wood |
Software & Marking Features
- Text & Symbols: Alphabets, numbers, symbols
- Fonts: PM font, 5×7 font (selectable via Windows software)
- Multi-line Marking:
• App: single line only
• Windows: up to 30 fields - Text Height Options:
• App: S, M, L (1–15 mm)
• Windows: 1–15 mm (0.1 mm increment) - Marking Force & Quality: Adjustable from weak to strong (0–9 scale)
- logo & Graphics: BMP, JPG tracing, DXF auto-conversion (Windows)
- 2D Codes: QR, Data Matrix (up to 80 characters)
- Serial & Date Marking: Incremental serial numbers (1–9999), full date/time/shift stamping
- Memory: Stores up to 255 files in device memory
