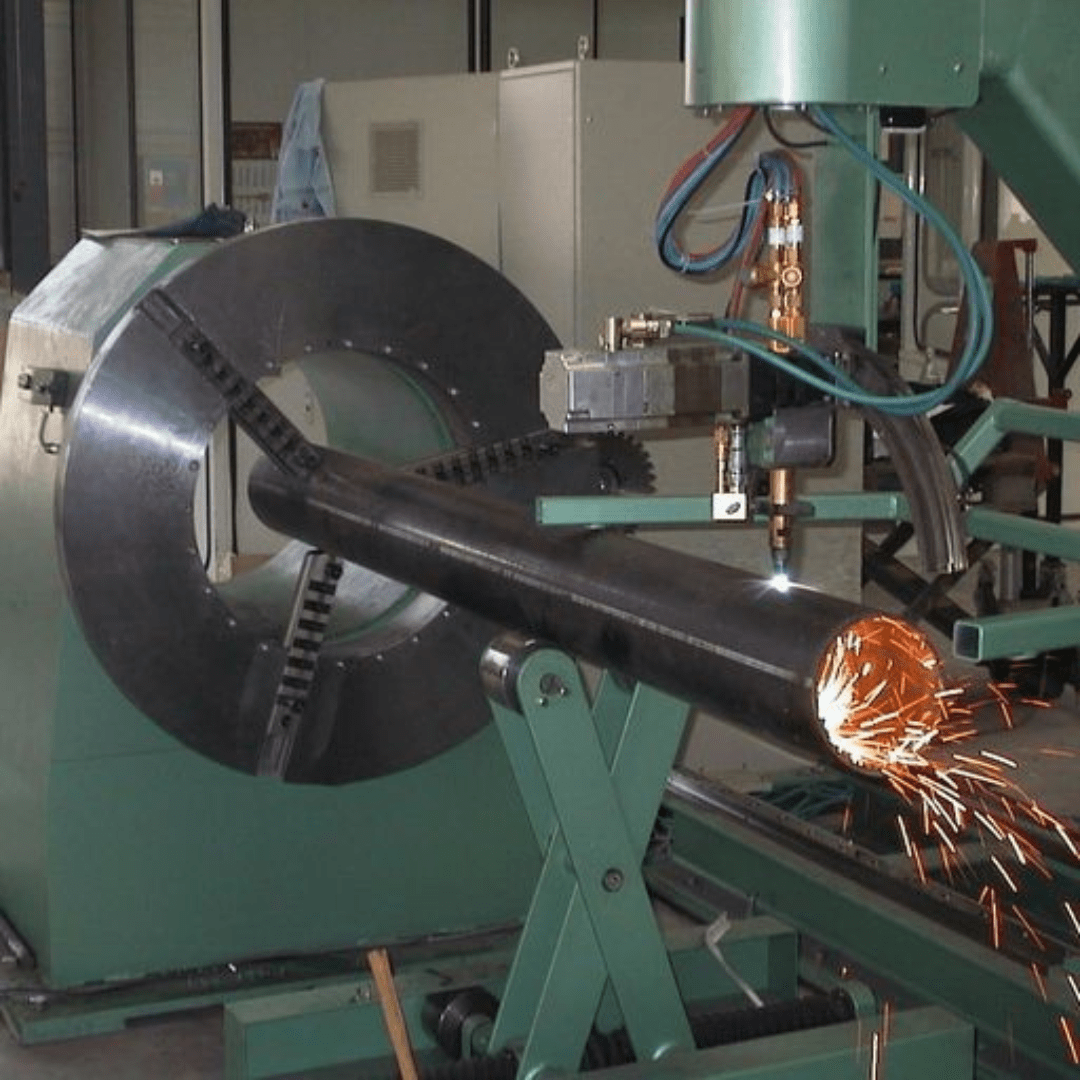

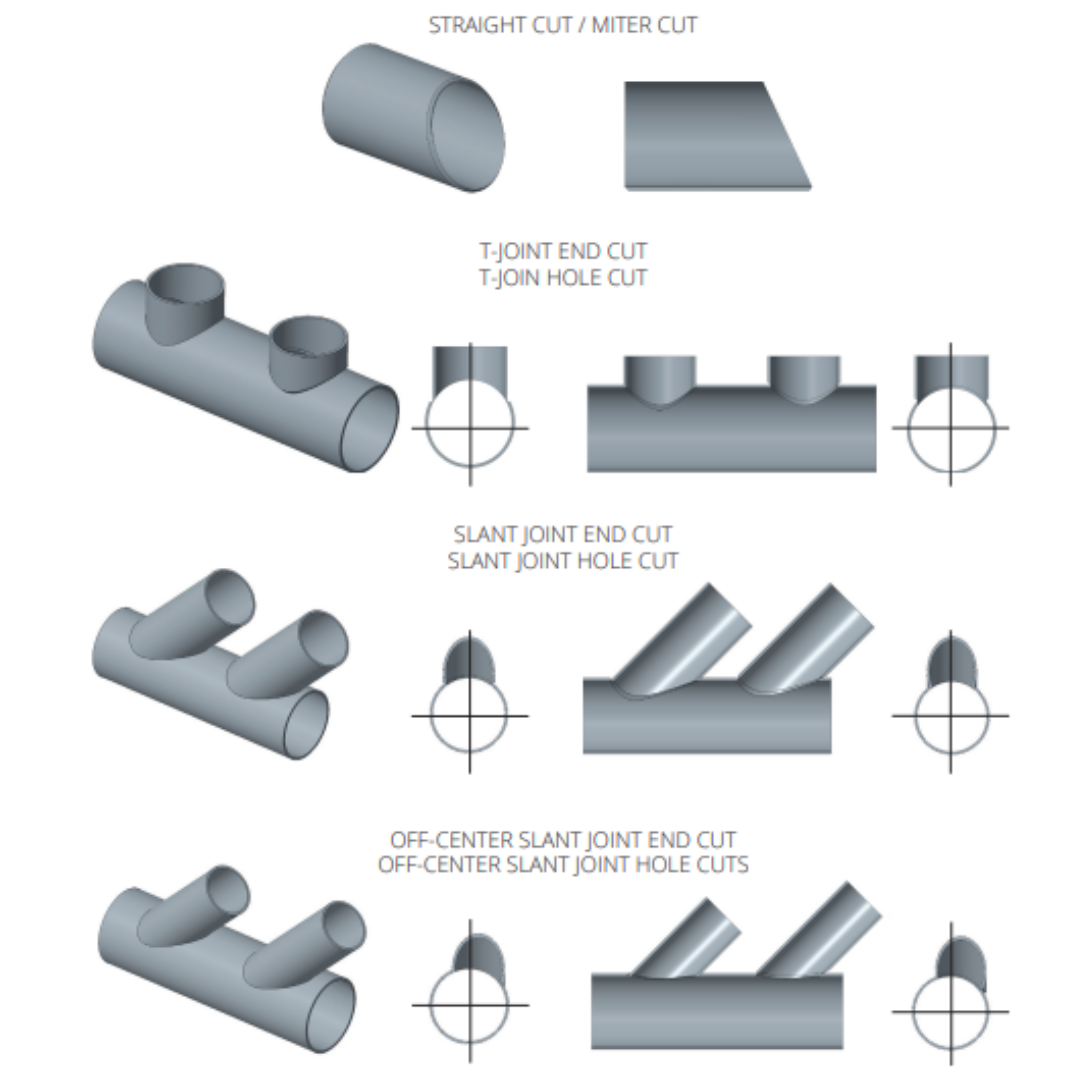

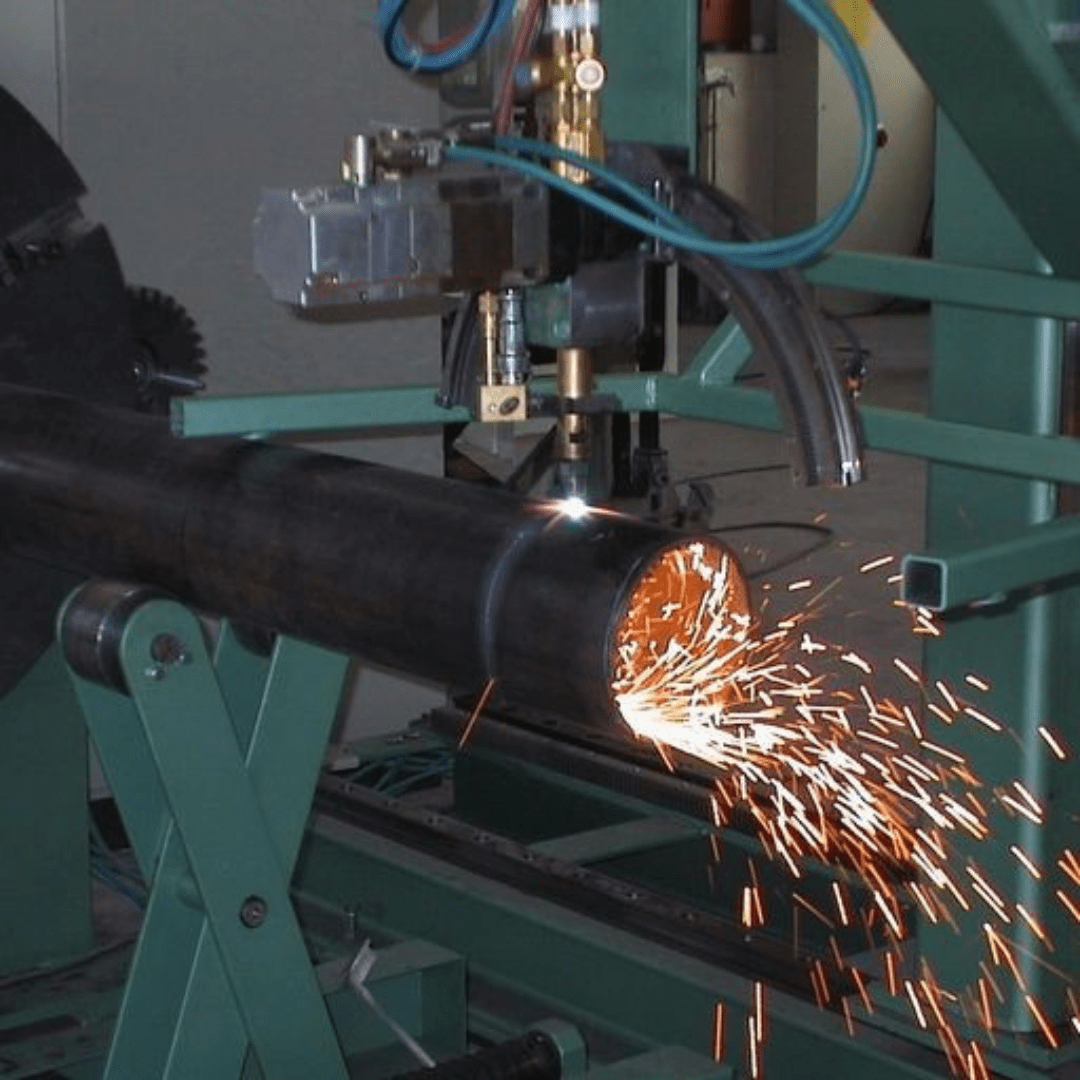

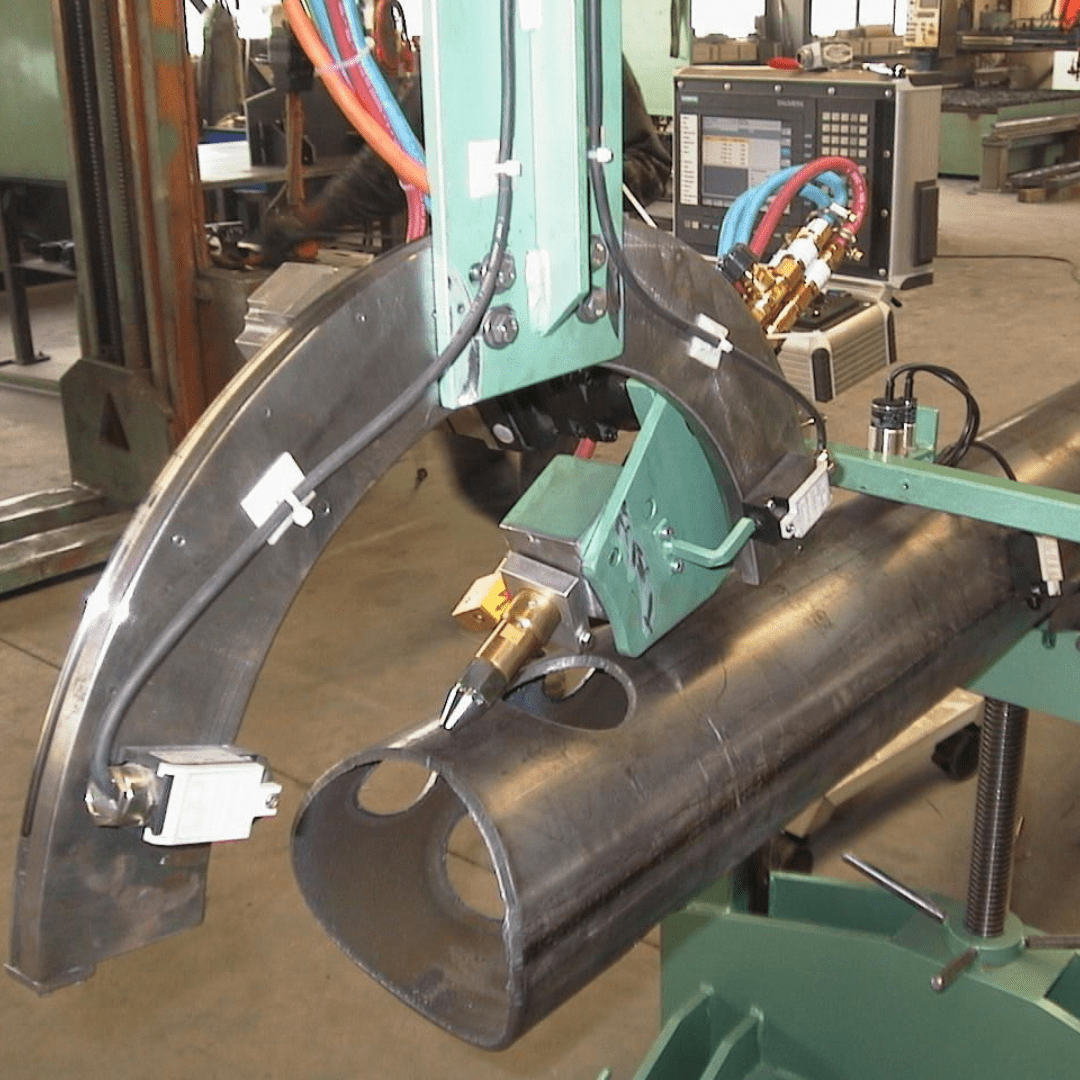

The RSM series of five-axis CNC-controlled pipe-cutting machines are designed for precise cutting of branches and penetrations in pipeline and steel construction. With five controlled axes—pipe rotation, torch longitudinal movement, torch tilting, torch rotation, and vertical torch movement—combined with a computer-controlled height sensor, these machines can produce complex shapes with or without weld seam preparation.

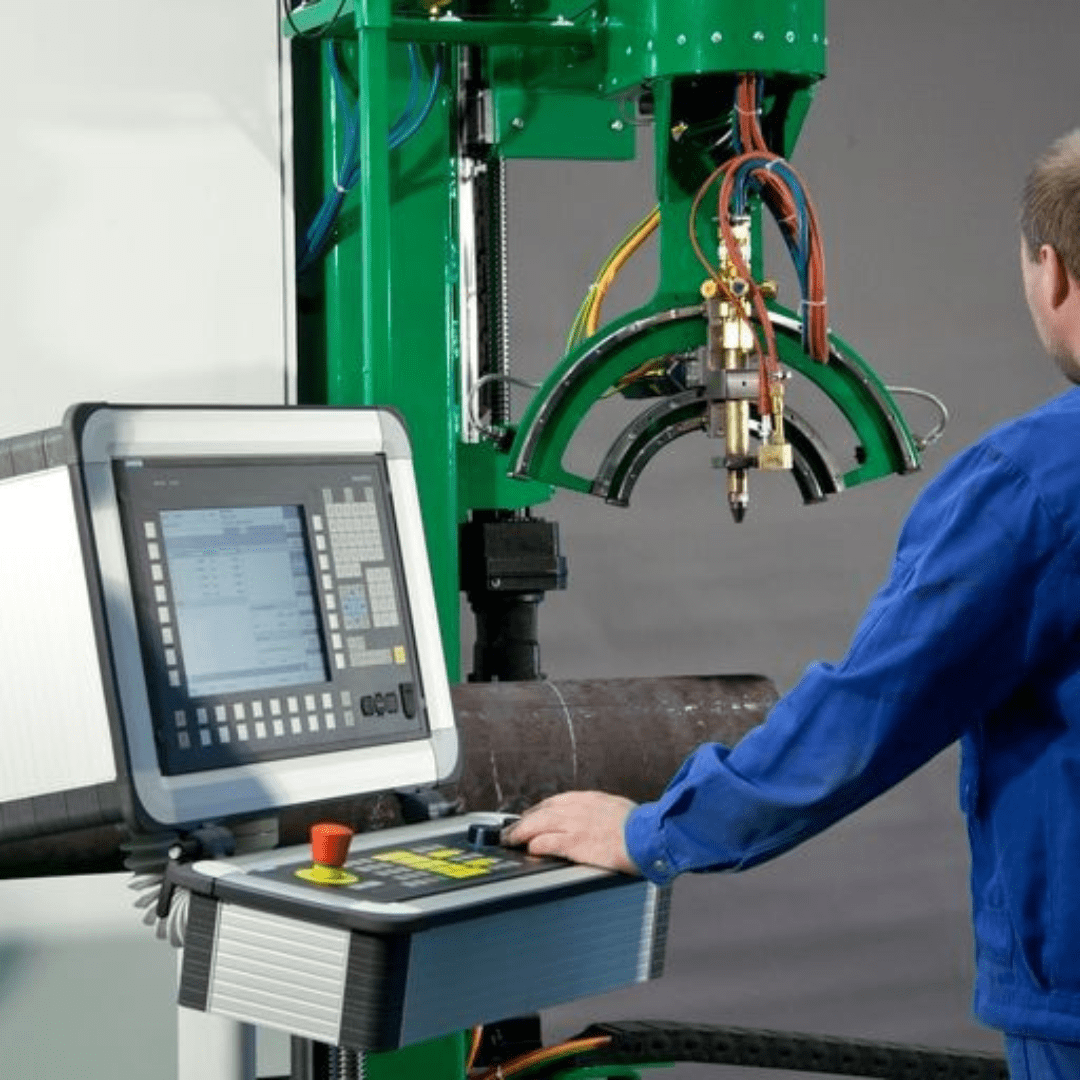

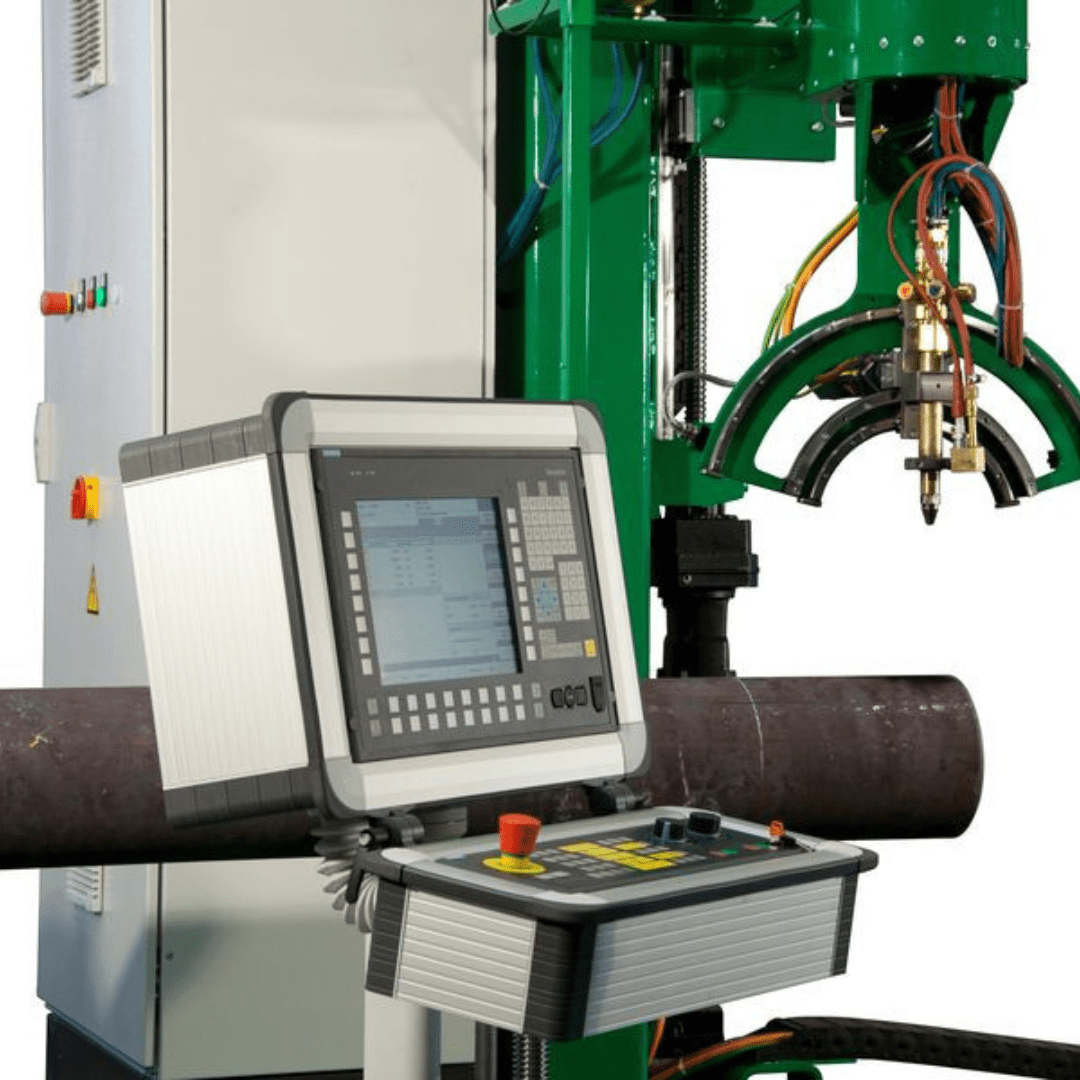

Offering both online menu-driven programming directly at the machine and offline programming via network data transfer, they provide maximum flexibility for various production environments. Equipped with oxy-fuel and plasma cutting capabilities, the RSM range supports efficient and high-precision cutting across a wide range of materials.
| Model No. | DN (mm) | Length x Width x Height (mm) (without control cabinet) |
Workpiece Length (mm) |
|---|---|---|---|
| RSM400 | 20 – 400 | 3000 x 6000 x 12000 | 3000 / 6000 / 12000 |
| RSM630 | 20 – 630 | 3500 x 6000 x 12000 | 6000 / 12000 |
| RSM1200 | 25 – 1200 | 3500 x 6000 x 12000 | 6000 / 12000 |
