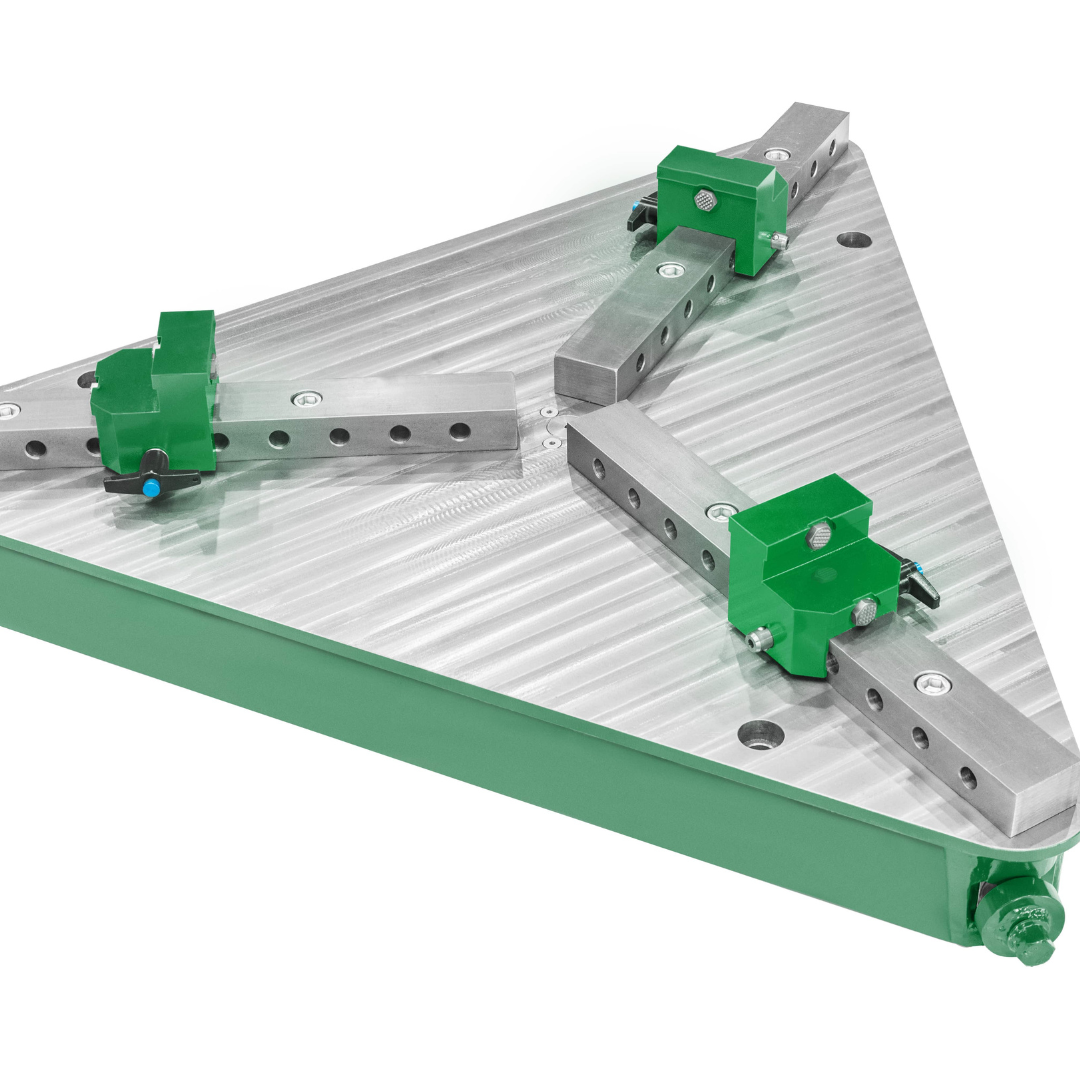

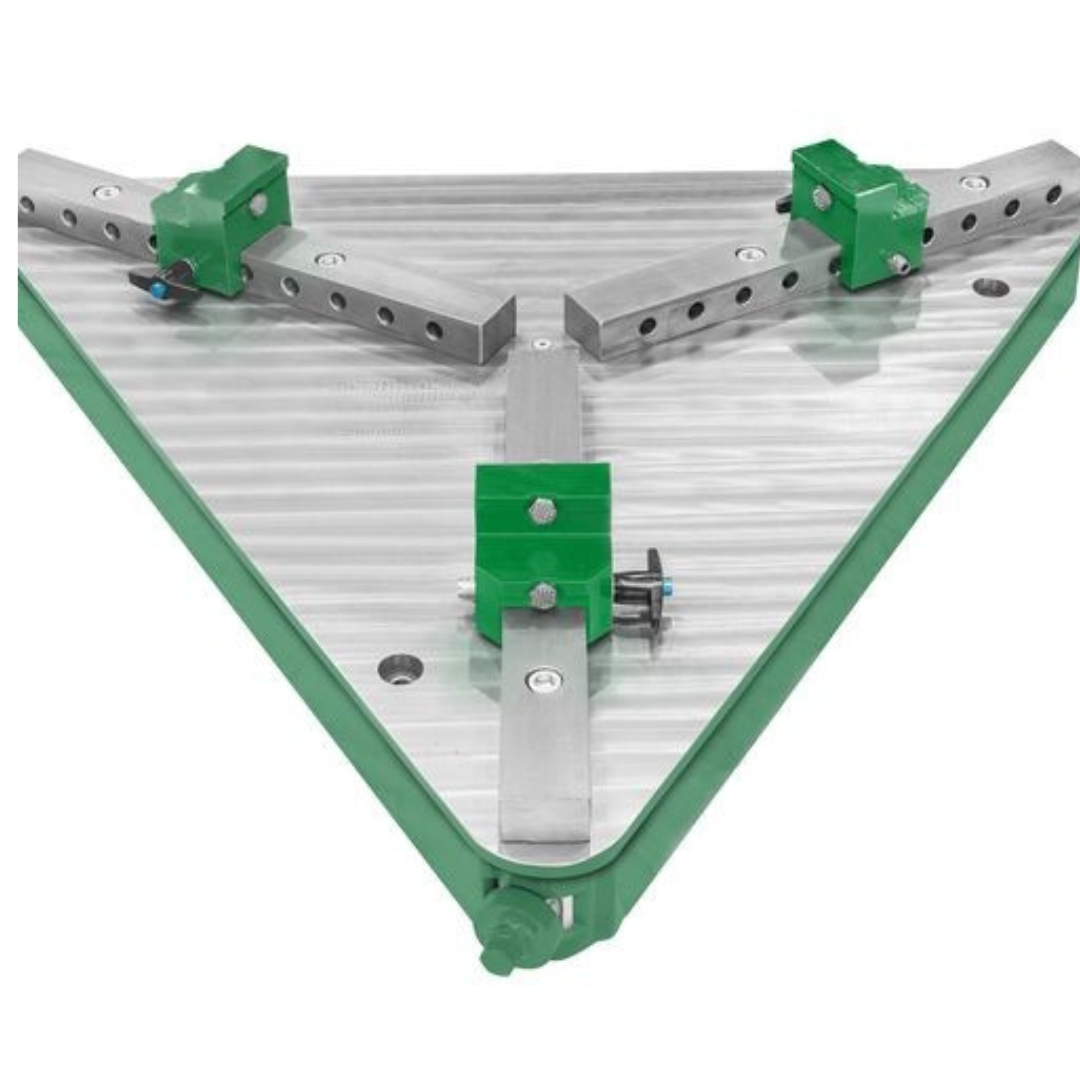

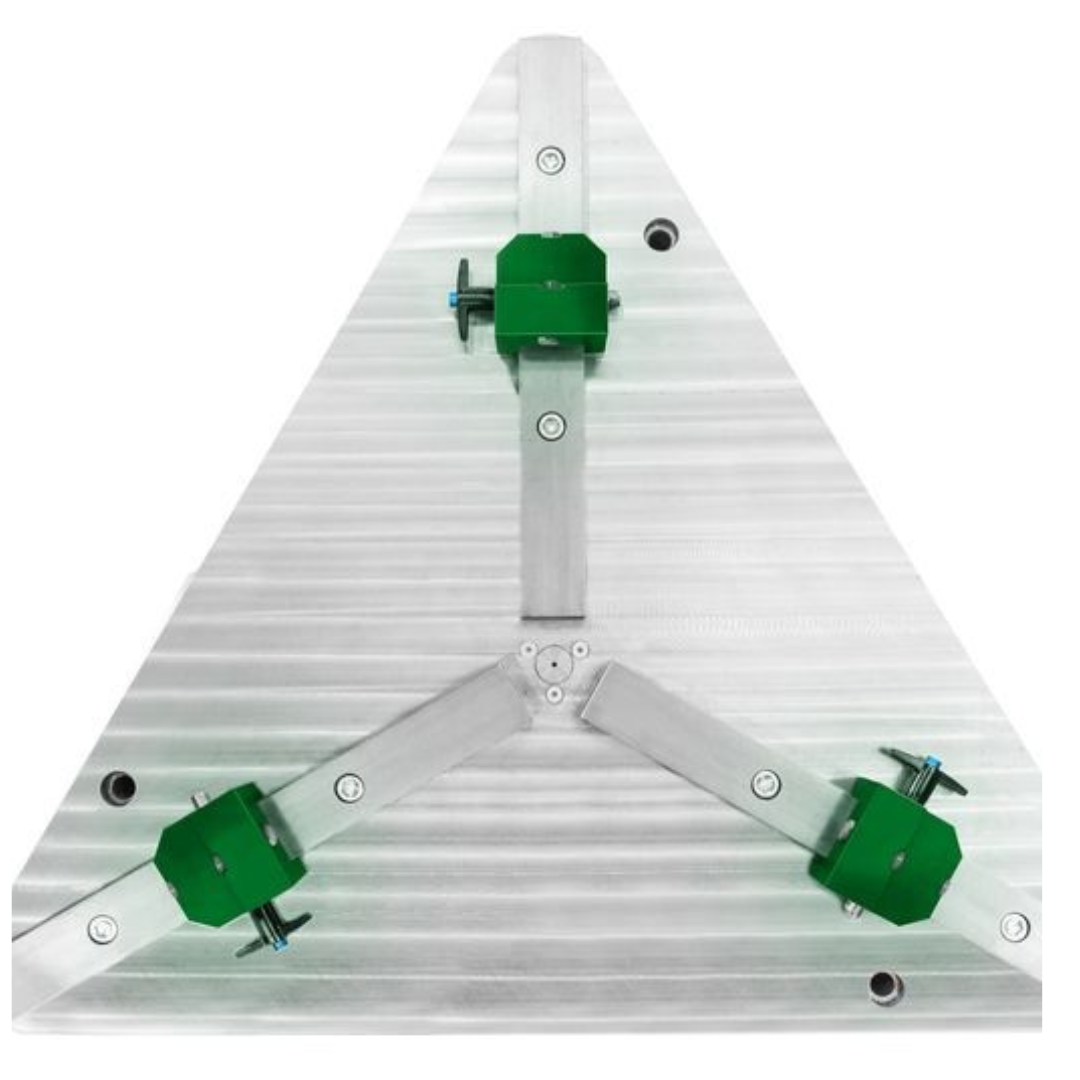

The MC Series Manual Chucks are specifically designed for heavy-duty welding applications, offering a fully enclosed housing that ensures durability and protection in demanding environments. These chucks feature a single-point cam operation, allowing for precise and secure clamping of workpieces. The quick-change reversible jaws provide flexibility, accommodating different workpiece sizes with ease.

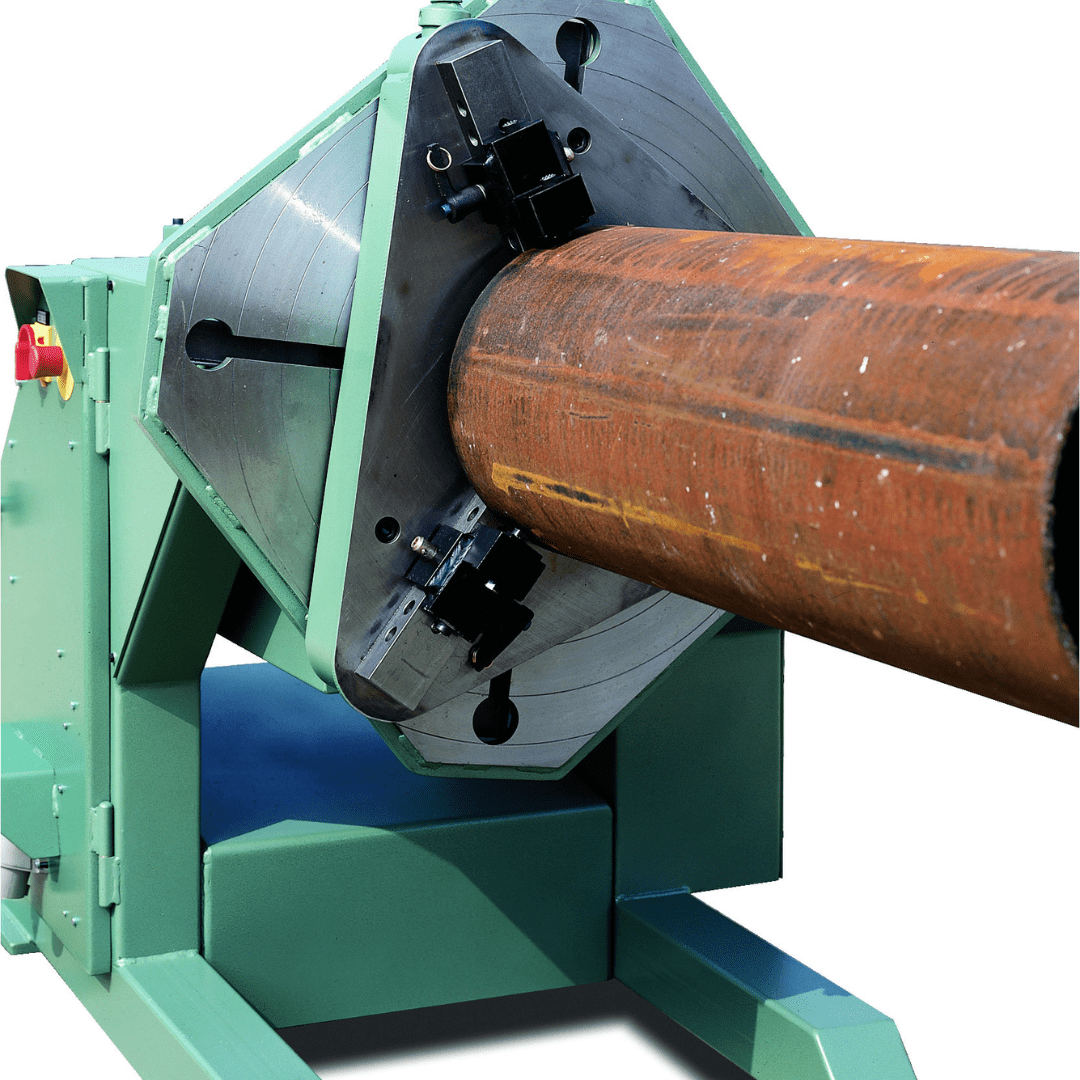

Standard delivery includes steel jaws, while optional hardened jaws are available for enhanced durability and extended service life. Engineered for reliability and efficiency, the MC Series Manual Chucks are ideal for ensuring stable and accurate workpiece positioning during welding operations.

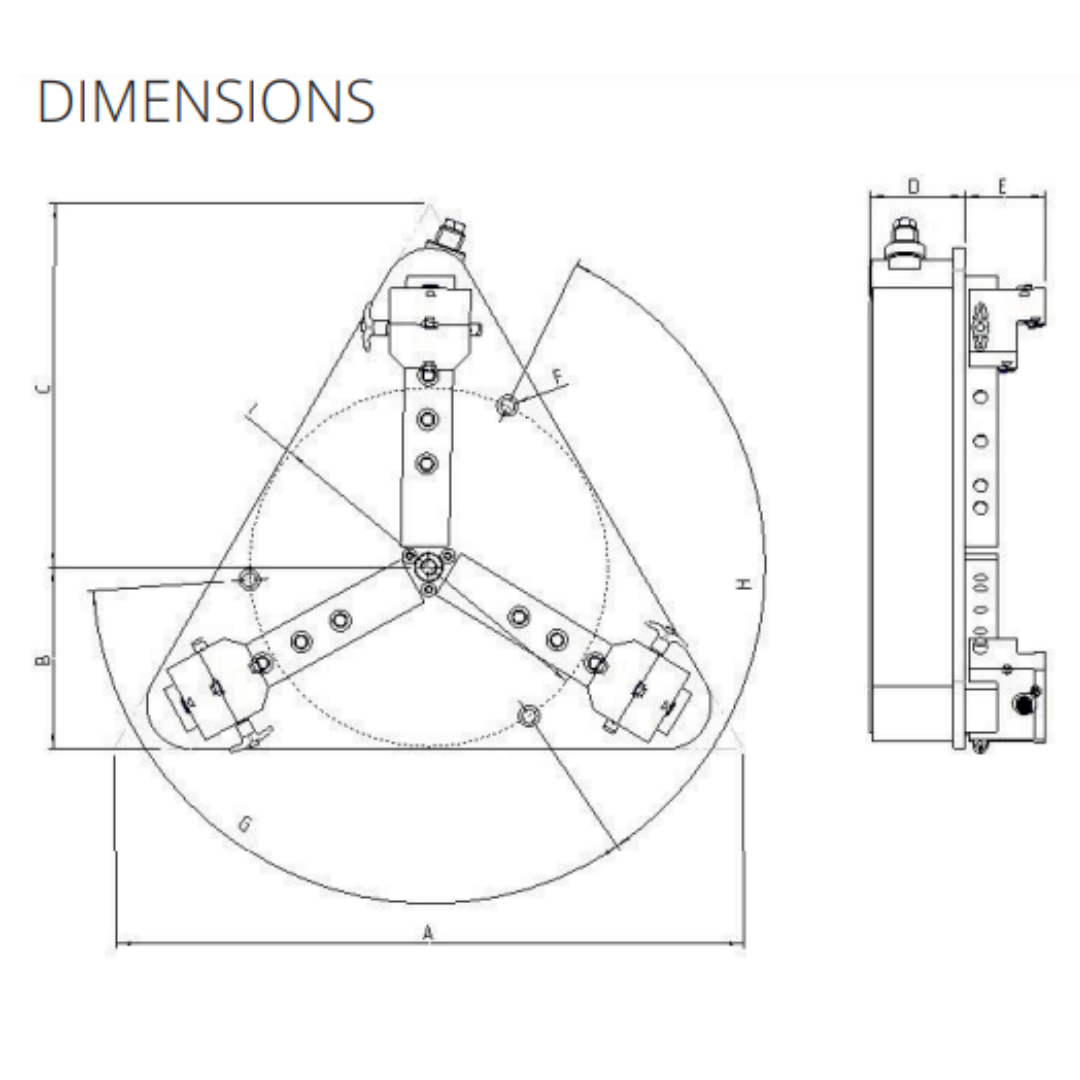

| Model No. | Clamping Diameter Max. | Clamping Diameter Min. | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MC700 | 700 | 40 | 770 | 225 | 425 | 118 | 100 | 17 | 120 | 120 | 445 |
| MC1000 | 1000 | 40 | 1160 | 335 | 670 | 118 | 100 | 22 | 120 | 120 | 840 |
