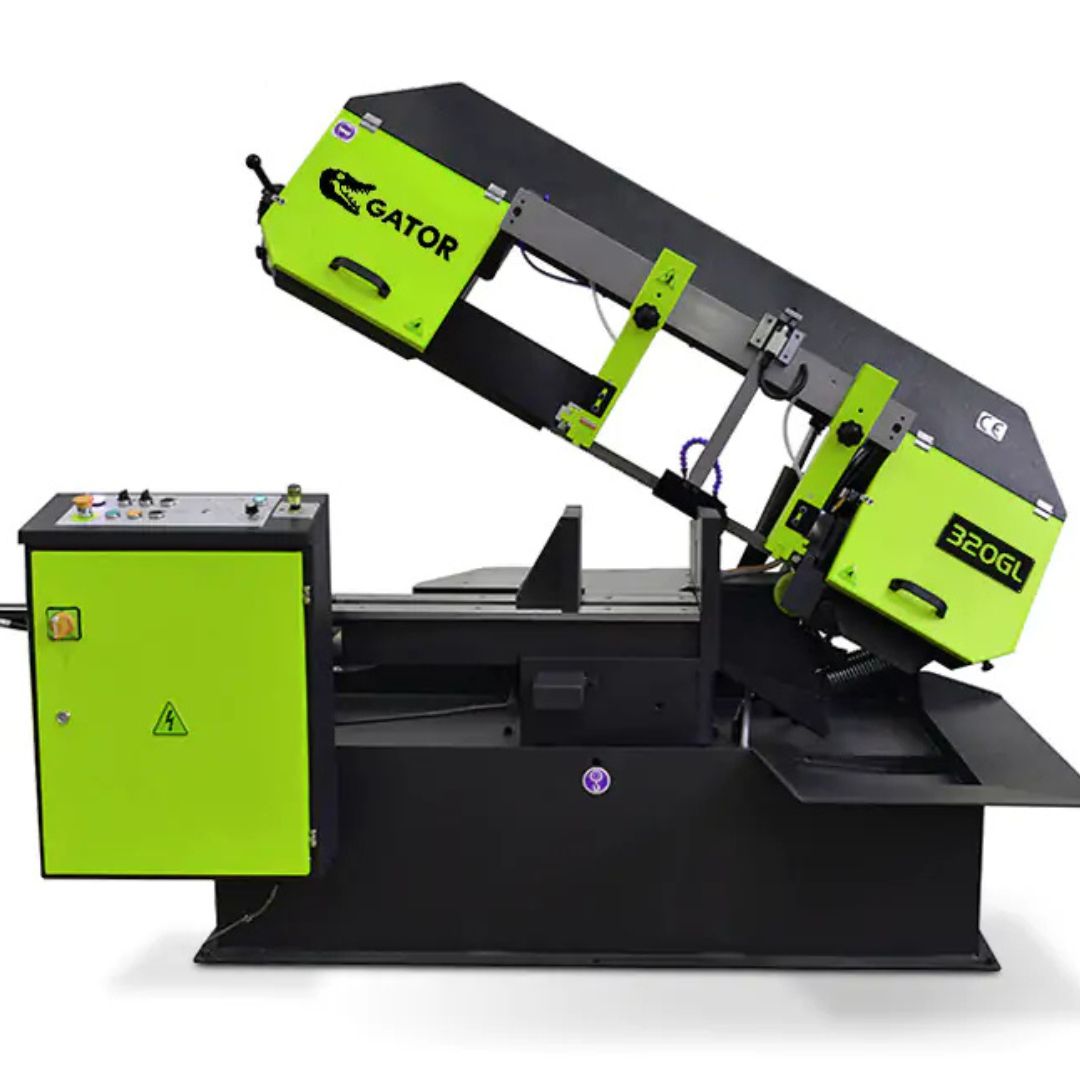

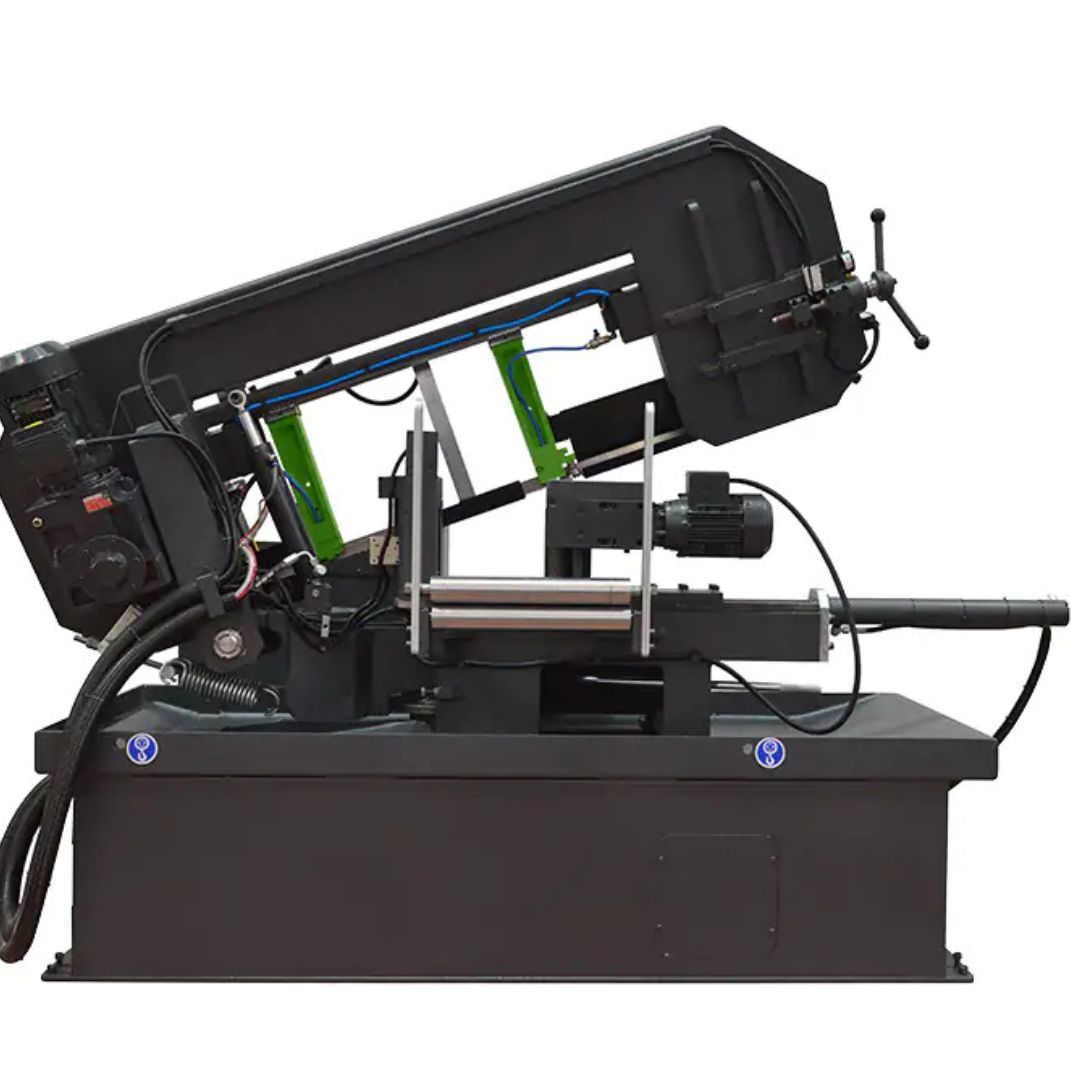

In a job shop, versatility is king. One minute you’re cutting straight 90° slugs, and the next you need a 45° mitre for a frame, followed by a steep 60° cut for a brace. The Semi-Automatic Single Mitre Pivot Series (GFSY Series) is engineered to handle this mix with ease, offering the rigidity of an industrial saw with the quick-change flexibility your schedule demands.
Pivot the Saw, Not the Material
Traditional saws force you to swing long beams across your shop floor to cut an angle. With our Pivot design, the material stays put. You simply unlock the frame, swing the head to your desired angle (0° to 60°), and lock it in.
- Space Saving: Keeps your shop footprint compact and safe.
- Speed: Change angles in under 30 seconds with the easy-read degree scale and quick-lock lever.
Semi-Automatic Efficiency
Bridge the gap between manual labour and full automation.
- Hydraulic Muscle: A powerful hydraulic cylinder controls the downfeed rate, giving you optimal pressure for cutting everything from thin-wall tube (low pressure) to solid stainless bar (high pressure).
- Auto-Cycle: Once the cut is done, the machine automatically stops the blade and lifts the head back to the preset height, ready for the next cut immediately.
- Hydraulic Vise: Secure your workpiece instantly with the flip of a switch; no more manual cranking.
Industrial Reliability
- Vibration-Free Cutting: The heavy-gauge steel bow and cast-iron pivot base absorb vibration, delivering a smooth finish that often eliminates secondary grinding.
- Blade Preservation: Includes a standard Microspray or Flood Coolant System and a driven Blade Brush to clear chips, keeping your blade cool and preventing premature wear.
Technical Data for GFSY 320GL Model
| Specifications | Value |
| Cutting Capacity @ 0° |
○ 12.6″ (Round) □ 24″ x 12.6″ (Rect) ▭ 12.6″ (Square) |
| Cutting Capacity @ +15° |
○ 12.6″ □ 20″ x 12.6″ ▭ 12.6″ |
| Cutting Capacity @ +30° |
○ 12.6″ □ 13.97″ x 12.6″ ▭ 12.6″ |
| Cutting Capacity @ +45° |
○ 12.6″ □ 13.97″ x 12.6″ ▭ 12.6″ |
| Cutting Capacity @ +60° |
○ 11″ □ 11″ x 11″ ▭ 11″ |
| Main Motor | 3 HP |
| Hydraulic Motor | 0.5 HP |
| Coolant Pump | 0.16 HP |
| Band Dimensions | 163.78″ x 1.34″ x 0.04″ |
| Working Height | 29.13″ |
| Machine Weight | 2635 lbs |
| Dimensions (L x W x H) | 83″ x 48″ x 53″ |
