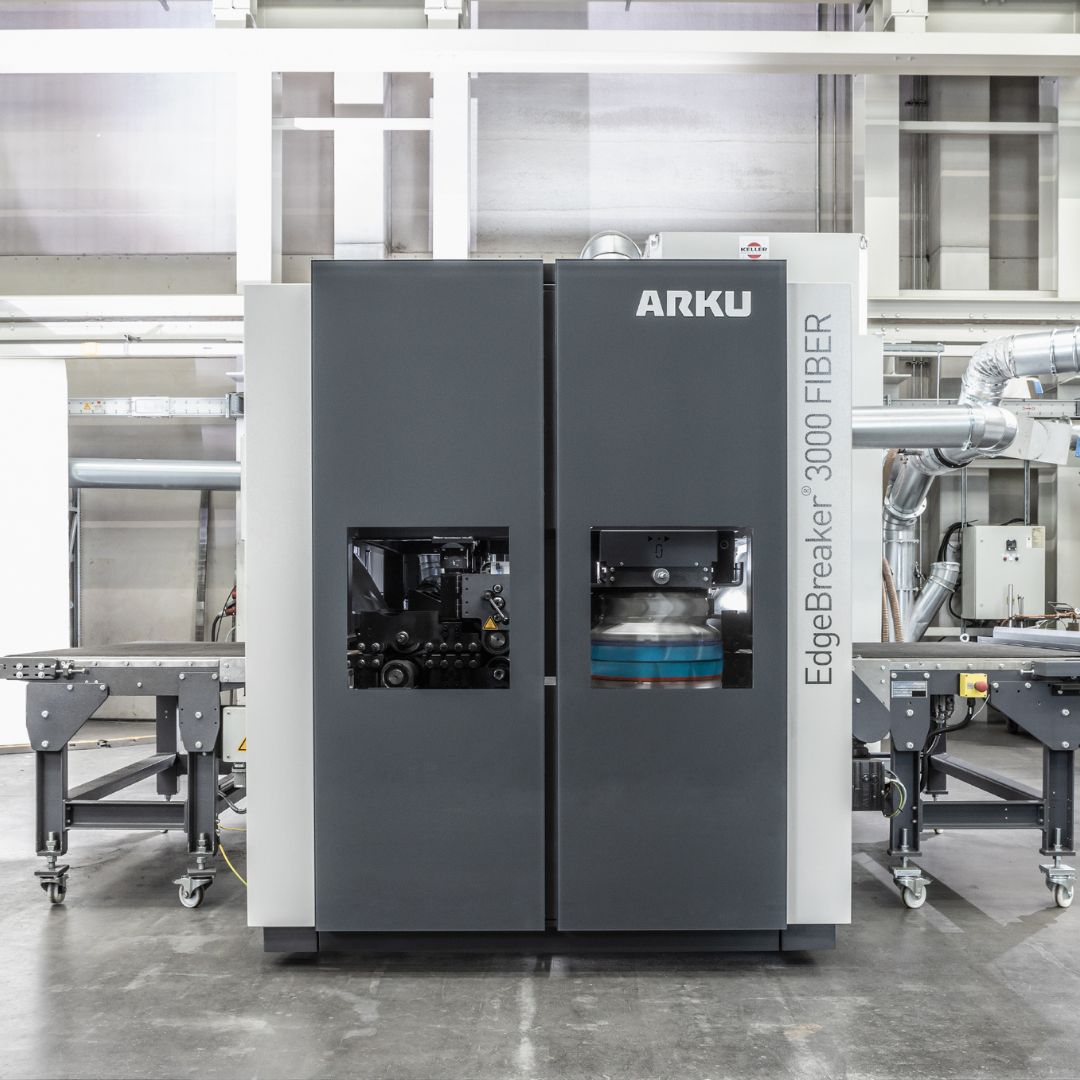

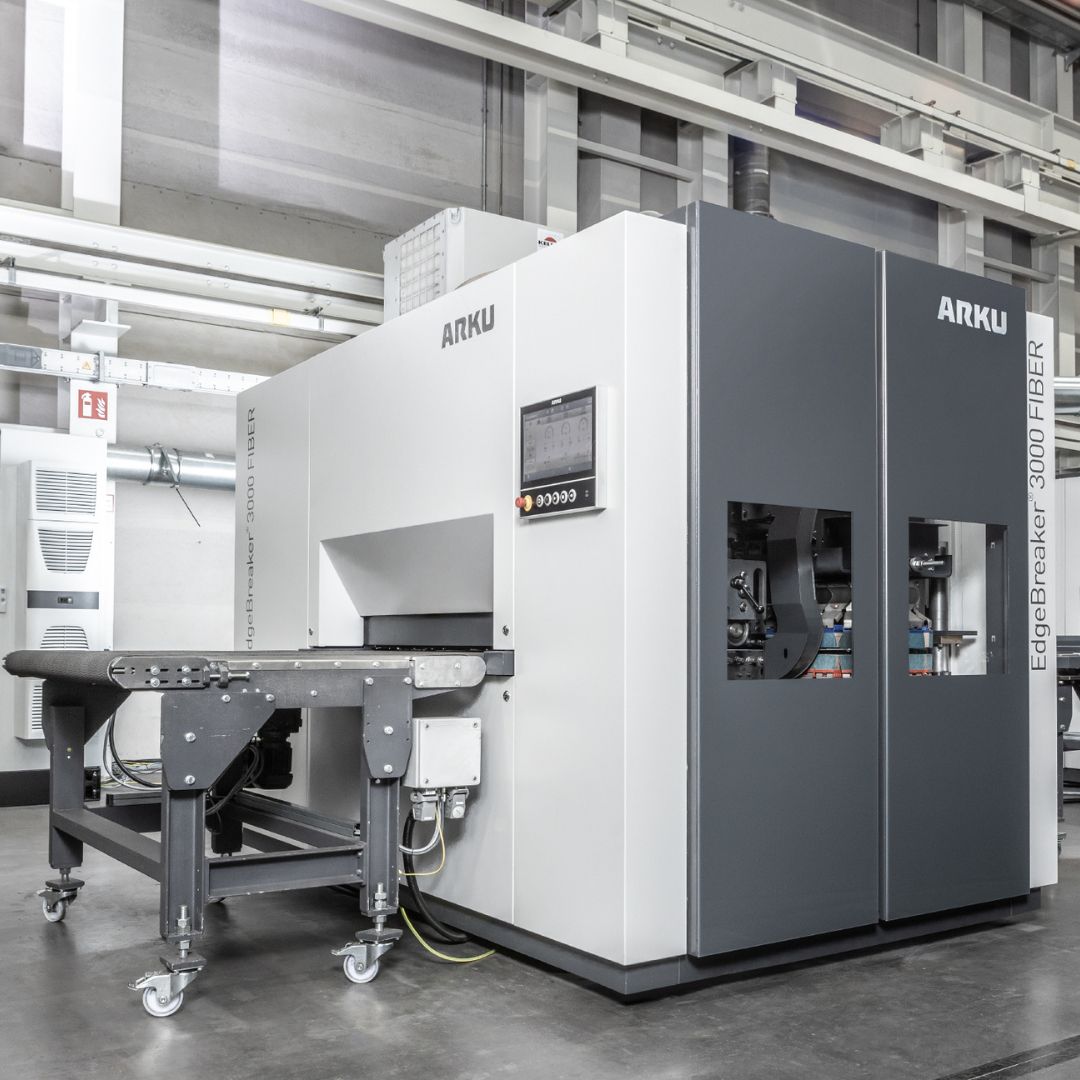

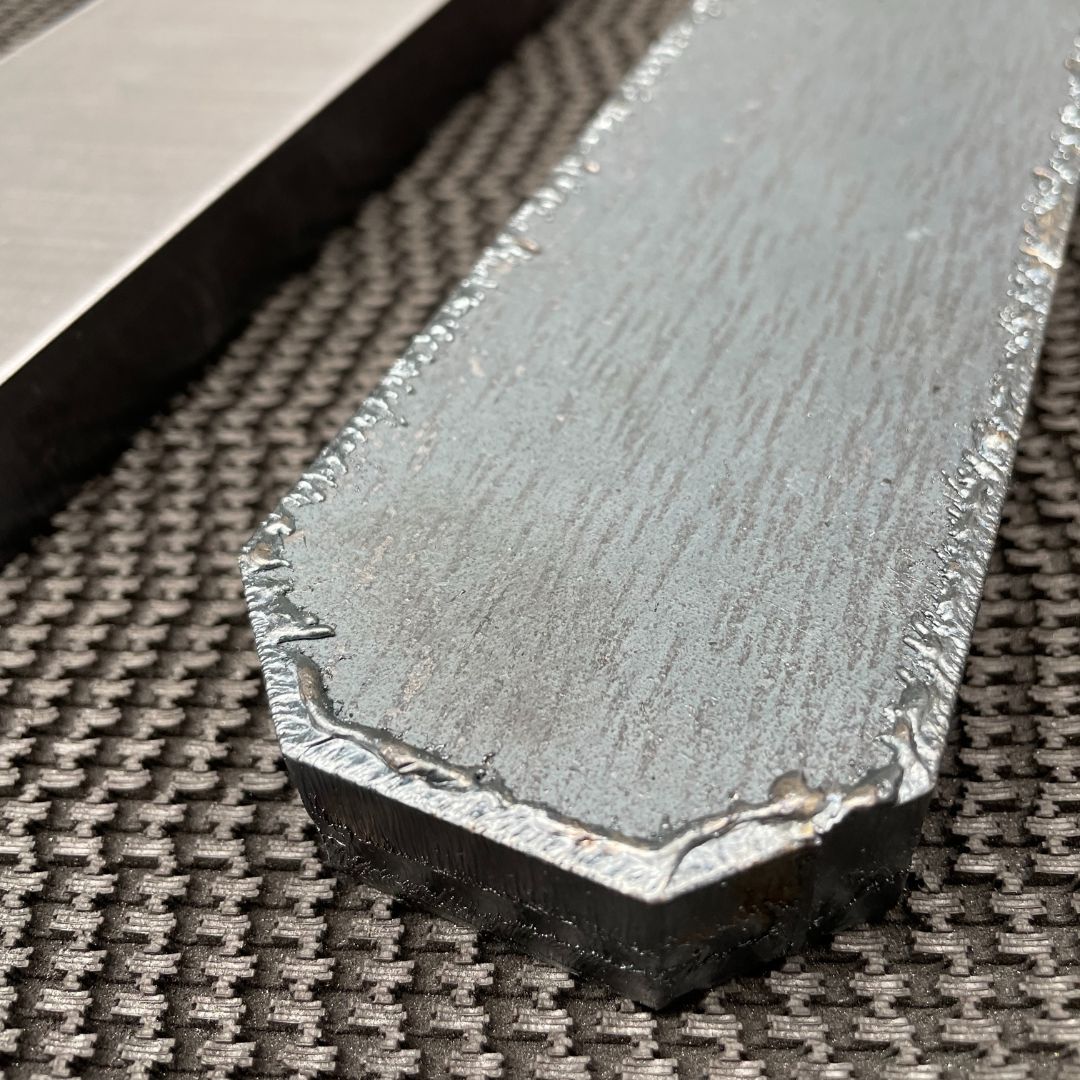

Fiber-laser cutting offers unmatched precision, but it can leave behind stubborn burrs that slow production and compromise finish quality. The ARKU EdgeBreaker® 3000 FIBER is engineered to solve this challenge—removing burrs and rounding edges on both sides in a single, continuous pass.
Technical Data:
| Specification | Details |
|---|---|
| Processing Type | Double-sided, dry |
| Material Thickness | 0.8 – 100 mm |
| Max. Working Width | 1,300 mm |
| Weight | Approx. 4,500 kg |
| Dimensions (L × W × H) | Approx. 3,100 × 1,900 × 2,200 mm |
Key Advantages:
- One-Pass Productivity – Double-sided processing halves cycle times, reducing handling and manual finishing.
- Purpose-Built Tooling – Optimised for the hard, sharp burrs produced by fibre lasers.
- Uniform Quality – Automatic tool wear compensation ensures consistent performance across long runs.
- Fast Changeovers – Quick-swap brush system and saved job presets minimise downtime.
- Operator-Friendly – Intuitive touch-screen controls streamline setup and training.
Why It Matters:
- Reduces labour and speeds production by replacing manual grinding
- Improves safety and compliance with consistent edge rounding
- Maintains predictable throughput even on tough materials and complex profiles
| Feature | Benefit |
|---|---|
| Double-Sided Single Pass | Cuts processing time by up to 50%, removes manual effort |
| Purpose-Built Tooling | Handles the toughest fibre-laser burrs without slowdown |
| Auto Wear Compensation | Consistent results across the tool’s lifespan |
| Quick-Swap Brushes | Minimal downtime during changeovers |
| Intuitive HMI | Easy to learn, fast to set up |
Frequently Asked Questions:
1. How does the EdgeBreaker® 3000 FIBER remove tough fibre laser burrs?
It uses powerful dual abrasive belts to aggressively deburr from both top and bottom in a single pass, efficiently removing even the most stubborn burrs.
2. Can the EdgeBreaker® 3000 FIBER handle edge rounding on both sides at once?
Absolutely. After deburring, integrated rounding brushes simultaneously smooth the edges on both sides, eliminating the need for part flipping and manual rework.
3. What’s the advantage of double-sided deburring and edge rounding?
It delivers consistent surface quality, enhances safety, and reduces handling. The seamless one-pass process cuts production time and costs by up to 50%.
4. Will subsequent processes improve after using this machine?
Yes. Burr-free, rounded edges facilitate downstream operations like painting, coating, and assembly, without additional prep or delays.
5. How are abrasive tool changes handled?

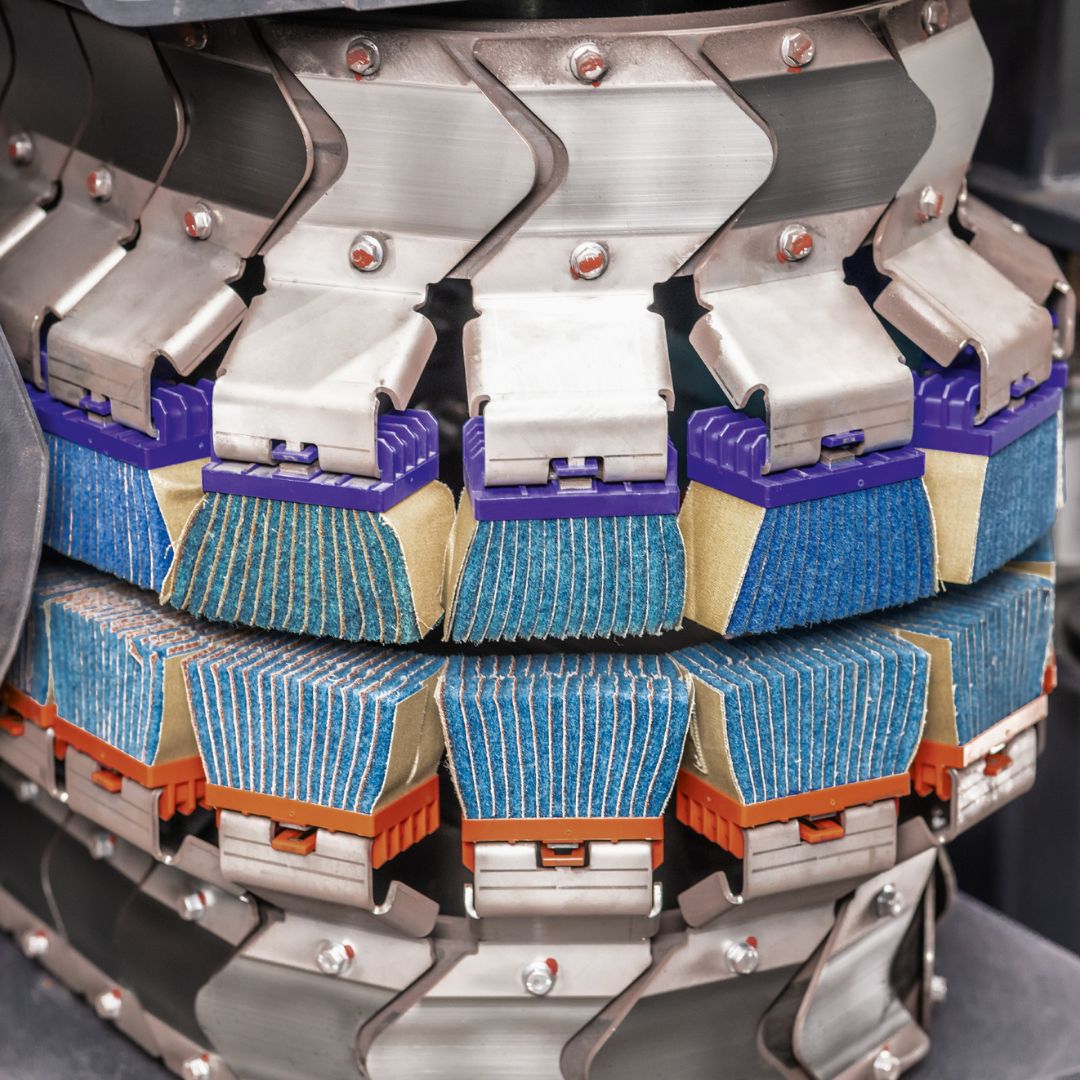

The system features a quick-change design where brushes and belts can be swapped out swiftly, without tools, ensuring minimal setup time.
6. How does the machine ensure consistent results over time despite tool wear?
With automatic wear compensation, the system continuously measures abrasive wear and adjusts processing parameters to maintain uniform output from start to finish.
